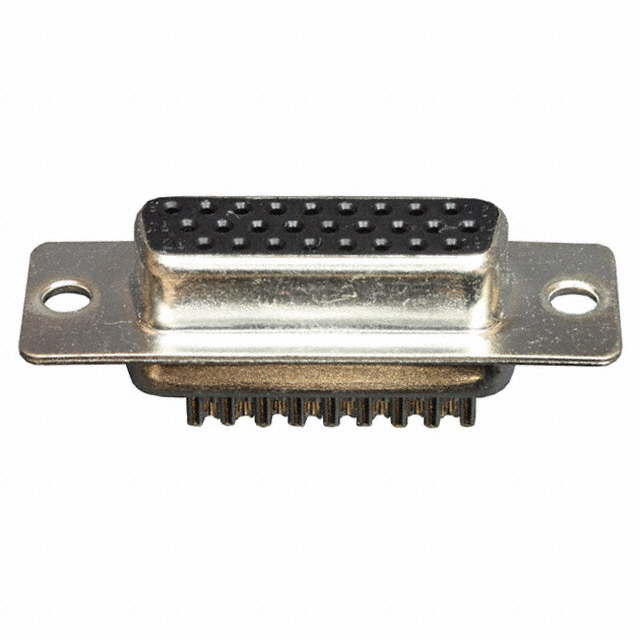

A-HDF 26 LL/Z
ActiveAssmann WSW Components
CONN D-SUB HD RCPT 26P SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A-HDF 26 LL/Z
ActiveAssmann WSW Components
CONN D-SUB HD RCPT 26P SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A-HDF 26 LL/Z |
|---|---|
| Color | Black |
| Connector Style | High Density, D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 26 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Shell Size, Connector Layout | 2 |
| Shell Size, Connector Layout | (DA, A) High Density |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.52 | |
| 10 | $ 1.32 | |||
| 25 | $ 1.26 | |||
| 50 | $ 1.24 | |||
| 100 | $ 1.18 | |||
| 250 | $ 1.07 | |||
| 450 | $ 0.98 | |||
| 950 | $ 0.84 | |||
| 2400 | $ 0.79 | |||
Description
General part information
A-HDF 26 Series
26 Position D-Sub, High Density Receptacle, Female Sockets Connector
