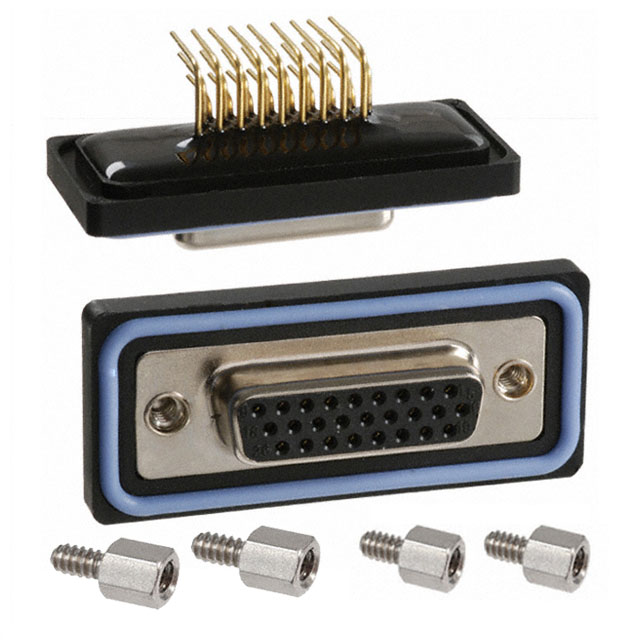

A-HDF 26 AA-WP
ActiveAssmann WSW Components
CONN D-SUB HD RCPT 26P R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A-HDF 26 AA-WP
ActiveAssmann WSW Components
CONN D-SUB HD RCPT 26P R/A SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A-HDF 26 AA-WP |
|---|---|
| Backset Spacing | 4.8 mm |
| Backset Spacing | 0.189 in |
| Color | Black |
| Connector Style | High Density, D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Dielectric Material | Glass Filled, Polyamide (PA), Nylon |
| Flange Feature | Female Screwlock, Mating Side |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 26 |
| Number of Rows | 3 |
| Shell Size, Connector Layout | 2 |
| Shell Size, Connector Layout | (DA, A) High Density |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 20.09 | |
| 20 | $ 17.41 | |||
| 40 | $ 16.26 | |||
| 80 | $ 14.35 | |||
| 240 | $ 13.39 | |||
| 440 | $ 13.10 | |||
Description
General part information
A-HDF 26 Series
26 Position D-Sub, High Density Receptacle, Female Sockets Connector
Documents
Technical documentation and resources
