UC385TDTR-ADJ
Active5-A, ULTRA-LOW-DROPOUT VOLTAGE REGULATOR WITH REVERSE CURRENT PROTECTION FROM 0°C TO 100°C
Deep-Dive with AI
Search across all available documentation for this part.
UC385TDTR-ADJ
Active5-A, ULTRA-LOW-DROPOUT VOLTAGE REGULATOR WITH REVERSE CURRENT PROTECTION FROM 0°C TO 100°C
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UC385TDTR-ADJ |
|---|---|
| Current - Output | 5 A |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | 0 °C |
| Output Configuration | Positive |
| Output Type | Adjustable (Fixed) |

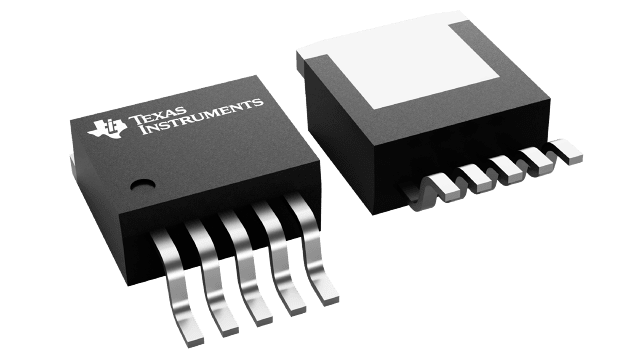

| Package / Case | TO-263-6, TO-263BA, D2PAK (5 Leads + Tab) |
| Protection Features | Reverse Polarity, Over Temperature, Short Circuit |
| Supplier Device Package | TO-263 (DDPAK-5) |
| Voltage - Input (Max) [Max] | 7.5 V |
| Voltage - Output (Min/Fixed) | 1.2 V |
UC385 Series
| Part | Number of Regulators | Voltage - Input (Max) [Max] | Package / Case | Output Configuration | Supplier Device Package | Current - Output | Voltage - Output (Min/Fixed) | Output Type | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Protection Features | Output Type | Regulator Type | Channels per IC | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Output | Supplied Contents | Utilized IC / Part | Board Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments | 1 | 7.5 V | TO-220-5 | Positive | TO-220-5 | 5 A | 2.1 V | 1.81 mOhm | 0 °C | 100 °C | Through Hole | Over Temperature Reverse Polarity Short Circuit | |||||||||
Texas Instruments | 1 | 7.5 V | D2PAK (5 Leads + Tab) TO-263-6 TO-263BA | Positive | TO-263 (DDPAK-5) | 5 A | 1.2 V | 0 °C | 100 °C | Surface Mount | Over Temperature Reverse Polarity Short Circuit | Adjustable (Fixed) | |||||||||
Texas Instruments | 1 | 7.5 V | D2PAK (5 Leads + Tab) TO-263-6 TO-263BA | Positive | TO-263 (DDPAK-5) | 5 A | 1.2 V | 0 °C | 100 °C | Surface Mount | Over Temperature Reverse Polarity Short Circuit | Adjustable (Fixed) | |||||||||
Texas Instruments | 1 | 7.5 V | D2PAK (5 Leads + Tab) TO-263-6 TO-263BA | Positive | TO-263 (DDPAK-5) | 5 A | 2.5 V | 1.81 mOhm | 0 °C | 100 °C | Surface Mount | Over Temperature Reverse Polarity Short Circuit | |||||||||
Texas Instruments | 1 | 7.5 V | D2PAK (5 Leads + Tab) TO-263-6 TO-263BA | Positive | TO-263 (DDPAK-5) | 5 A | 2.1 V | 1.81 mOhm | 0 °C | 100 °C | Surface Mount | Over Temperature Reverse Polarity Short Circuit | |||||||||
Texas Instruments | 5 A | Positive Adjustable | 1 - Single | 7.5 V | 1.7 V | 1.2 V | Board(s) | UC385 | Fully Populated | ||||||||||||
Texas Instruments | 1 | 7.5 V | D2PAK (5 Leads + Tab) TO-263-6 TO-263BA | Positive | TO-263 (DDPAK-5) | 5 A | 1.5 V | 1.81 mOhm | 0 °C | 100 °C | Surface Mount | Over Temperature Reverse Polarity Short Circuit | |||||||||
Texas Instruments | 1 | 7.5 V | D2PAK (5 Leads + Tab) TO-263-6 TO-263BA | Positive | TO-263 (DDPAK-5) | 5 A | 1.5 V | 1.81 mOhm | 0 °C | 100 °C | Surface Mount | Over Temperature Reverse Polarity Short Circuit | |||||||||
Texas Instruments | 1 | 7.5 V | TO-220-5 | Positive | TO-220-5 | 5 A | 1.5 V | 1.81 mOhm | 0 °C | 100 °C | Through Hole | Over Temperature Reverse Polarity Short Circuit | |||||||||
Texas Instruments | 1 | 7.5 V | TO-220-5 | Positive | TO-220-5 | 5 A | 2.5 V | 1.81 mOhm | 0 °C | 100 °C | Through Hole | Over Temperature Reverse Polarity Short Circuit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 500 | $ 6.60 | |
| 1000 | $ 5.74 | |||
| Texas Instruments | LARGE T&R | 1 | $ 8.93 | |
| 100 | $ 7.28 | |||
| 250 | $ 5.72 | |||
| 1000 | $ 4.86 | |||
Description
General part information
UC385 Series
The UC385 is a low dropout linear regulator providing a quick response to fast load changes. Combined with its precision onboard reference, the UC385 excels at driving GTL and BTL buses. Due to its fast response to load transients, the total capacitance required to decouple the regulator’s output can be significantly decreased when compared to standard LDO linear regulators.
Dropout voltage (VIN to VOUT) is only 490 mV maximum and 350 mV typical at 5-A load (0°C to 100°C).
The onboard bandgap reference is stable with temperature and scaled for a 1.2 V input to the internal power amplifier. The UC385 is available in fixed output voltages of 1.5 V, 2.1 V, or 2.5 V. The output voltage of the adjustable version can be set with two external resistors. If the external resistors are omitted, the output voltage defaults to 1.2 V.
