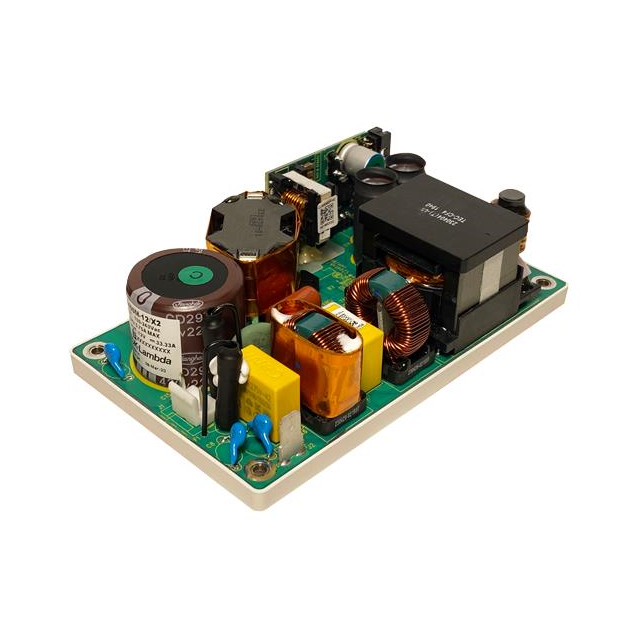

CUS400M-36/C

Active

TDK-LAMBDA

AC/DC OPEN FRAME POWER SUPPLY (PSU), ITE & MEDICAL, 1 OUTPUT, 400W, 250 W, 85V AC TO 264V AC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Safety Data Sheet EN +2

CUS400M-36/C

Active

TDK-LAMBDA

AC/DC OPEN FRAME POWER SUPPLY (PSU), ITE & MEDICAL, 1 OUTPUT, 400W, 250 W, 85V AC TO 264V AC

Deep-Dive with AI

DocumentsDatasheet Safety Data Sheet EN +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CUS400M-36/C

Applications	ITE (Commercial), Medical
Approval Agency	CE
Current - Output 1	6.94 A
Features	Universal Input, Adjustable Output, PFC, Remote Sense, Baseplate
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	250 W
Power (Watts)	400 W
Size / Dimension [x]	5.57 in
Size / Dimension [x]	141.6 mm
Size / Dimension [y]	3.36 "
Size / Dimension [y]	85.3 mm
Size / Dimension [z]	1.61 "
Size / Dimension [z]	40.8 mm
Standard Number	60601-1, 62368-1
Type	Open Frame
Voltage - Isolation	4000 V
Voltage - Output 1	36 V

CUS400M Series

Part	Standard Number	Type	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Mounting Type	Power (Watts)	Power (Watts)	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Isolation	Current - Output 1	Features	Voltage - Output 1	Number of Outputs
TDK-LAMBDA CUS400M-24/AX5	60601-1 60950-1 62368-1	Enclosed	ITE (Commercial) Medical	-20 °C	70 °C	CE	Chassis Mount	250 W	400 W	42.5 mm	142 mm	5.59 in	90 mm	3.54 in	1.67 in	4000 V	10.42 A	Adjustable Output Remote On/Off Remote Sense Standby Output Universal Input	24 V	1
TDK-LAMBDA CUS400M-24/A	60601-1 60950-1 62368-1	Enclosed	ITE (Commercial) Medical	-20 °C	70 °C	CE	Chassis Mount	250 W	400 W	42.5 mm	142 mm	5.59 in	90 mm	3.54 in	1.67 in	4000 V	10.42 A	Adjustable Output Remote Sense Standby Output Universal Input	24 V	1
TDK-LAMBDA CUS400M-36/A	60601-1 62368-1	Enclosed	ITE (Commercial) Medical	-20 °C	70 °C	CE	Chassis Mount	250 W	400 W	42.5 mm	142 mm	5.59 in	90 mm	3.54 in	1.67 in	4000 V	6.94 A	Adjustable Output PFC Remote Sense Universal Input	36 V	1
TDK-LAMBDA CUS400M-19/F	60601-1 62368-1	Enclosed	ITE (Commercial) Medical	-20 °C	70 °C	CE	Chassis Mount	250 W	400 W	67.5 mm	142 mm	5.59 in	90 mm	3.54 in	2.66 "	4000 V		Adjustable Output PFC Remote Sense Universal Input	19 V	1
TDK-LAMBDA CUS400M-19/C	60601-1 62368-1	Open Frame	ITE (Commercial) Medical	-20 °C	70 °C	CE	Chassis Mount	250 W	400 W	40.8 mm	141.6 mm	5.57 in	85.3 mm	3.36 "	1.61 "	4000 V		Adjustable Output Baseplate PFC Remote Sense Universal Input	19 V	1
TDK-LAMBDA CUS400M-12/F	60601-1 60950-1 62368-1	Enclosed	ITE (Commercial) Medical	-20 °C	70 °C	CE	Chassis Mount	250 W	400 W	67.5 mm	142 mm	5.59 in	90 mm	3.54 in	2.66 "	4000 V	20.83 A	Adjustable Output Remote Sense Standby Output Universal Input	12 V	1
TDK-LAMBDA CUS400M-12/A	60601-1 60950-1 62368-1	Enclosed	ITE (Commercial) Medical	-20 °C	70 °C	CE	Chassis Mount	250 W	400 W	42.5 mm	142 mm	5.59 in	90 mm	3.54 in	1.67 in	4000 V	20.83 A	Adjustable Output Remote Sense Standby Output Universal Input	12 V	1
TDK-LAMBDA CUS400M-19/B	60601-1 62368-1	Open Frame	ITE (Commercial) Medical	-20 °C	70 °C	CE	Chassis Mount	250 W	400 W	40.8 mm	141.6 mm	5.57 in	85.3 mm	3.36 "	1.61 "	4000 V		Adjustable Output Baseplate PFC Remote Sense Universal Input	19 V	1
TDK-LAMBDA CUS400M-15/U	60601-1 62368-1	Open Frame	ITE (Commercial) Medical	-20 °C	70 °C	CE	Chassis Mount	250 W	400 W	41 mm	142 mm	5.59 in	90 mm	3.54 in	1.61 "	4000 V	16.67 A	Adjustable Output PFC Remote Sense Universal Input	15 V	1
TDK-LAMBDA CUS400M-36/C	60601-1 62368-1	Open Frame	ITE (Commercial) Medical	-20 °C	70 °C	CE	Chassis Mount	250 W	400 W	40.8 mm	141.6 mm	5.57 in	85.3 mm	3.36 "	1.61 "	4000 V	6.94 A	Adjustable Output Baseplate PFC Remote Sense Universal Input	36 V	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 148.89
Newark	Each	1	$ 146.32
		10	$ 141.79
		25	$ 137.26
		50	$ 133.85

Description

General part information

CUS400M Series

CUS400M-36/C is a 400W CUS400M series AC/DC power supply. The compact CUS400M is packaged in the industry standard 3x5" footprint. The series can deliver 400W with forced air or 250W when convection cooled with a 400W peak power for extended periods of time (minutes). Cooling is also assisted via conduction through the base into the equipment chassis. With Medical & ITE certifications, the units can be used in both Class I & Class II (no ground wire) applications, and meets Class B Conducted and Radiated EMI.
