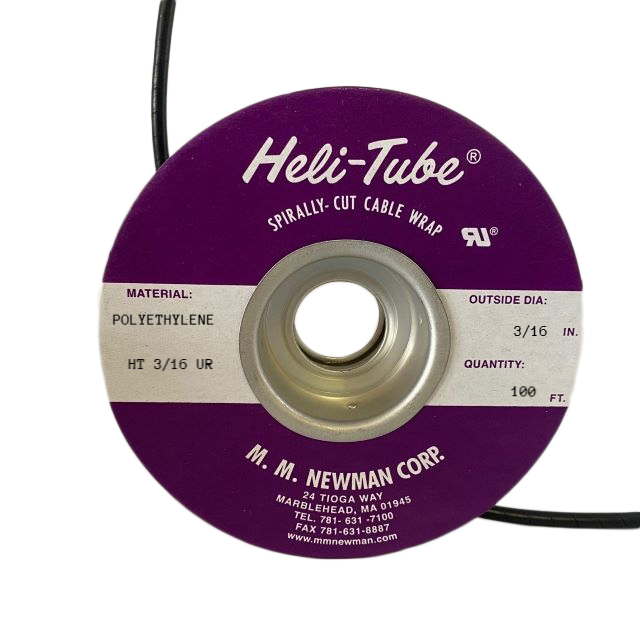

HT 3/16 UR
ActiveMM Newman Corporation
SPIRAL WRAP 0.127" X 100' BLACK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HT 3/16 UR
ActiveMM Newman Corporation
SPIRAL WRAP 0.127" X 100' BLACK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HT 3/16 UR |
|---|---|
| Abrasion Protection | Abrasion Resistant |
| Color | Black |
| Diameter - Inside, Expanded [diameter] | 1.5 in |
| Diameter - Inside, Expanded [diameter] | 38.1 mm |
| Diameter - Inside, Non-Expanded [diameter] | 0.127 in |
| Diameter - Inside, Non-Expanded [diameter] | 3.23 mm |
| Diameter - Outside, Non-Expanded [diameter] | 4.78 mm |
| Diameter - Outside, Non-Expanded [diameter] | 0.188 in |
| Features | Solvent Resistant, Chemical Resistant |
| Length | 100 ft |
| Length | 30.48 m |
| Material | Polyethylene (PE) |
| Operating Temperature [Max] | 88 °C |
| Operating Temperature [Min] | -60 °C |
| Type | Spiral Wrap |
| Type Attributes | Harness |
| Wall Thickness [custom] | 0.03 in |
| Wall Thickness [custom] | 0.76 mm |
HT 3/16 Series
| Part | Material | Features | Diameter - Inside, Expanded [diameter] | Diameter - Inside, Expanded [diameter] | Wall Thickness [custom] | Wall Thickness [custom] | Abrasion Protection | Diameter - Inside, Non-Expanded [diameter] | Diameter - Inside, Non-Expanded [diameter] | Length | Length | Operating Temperature [Min] | Operating Temperature [Max] | Color | Diameter - Outside, Non-Expanded [diameter] | Diameter - Outside, Non-Expanded [diameter] | Type Attributes | Type | Heat Protection | Environment Protection | Material Flammability Rating | Wall Thickness | Wall Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MM Newman Corporation | Polyethylene (PE) | Chemical Resistant Solvent Resistant | 1.5 in | 38.1 mm | 0.03 in | 0.76 mm | Abrasion Resistant | 0.127 in | 3.23 mm | 100 ft | 30.48 m | -60 °C | 88 °C | Natural | 4.75 mm | 0.187 in | Harness | Spiral Wrap | |||||
MM Newman Corporation | Polytetrafluoroethylene (PTFE) | Chemical Resistant Solvent Resistant | 1.5 in | 38.1 mm | 0.03 in | 0.76 mm | Abrasion Resistant | 0.127 in | 3.23 mm | 100 ft | 30.48 m | -268 °C | 260 ░C | Natural | 4.78 mm | 0.188 in | Harness | Spiral Wrap | Fire Resistant | UV Resistant | UL VW-1 UL94 V-0 | ||
MM Newman Corporation | Polyethylene (PE) | Chemical Resistant Solvent Resistant | 1.5 in | 38.1 mm | Abrasion Resistant | 0.107 in | 2.72 mm | 100 ft | 30.48 m | -20 C | 80 C | White | 4.78 mm | 0.188 in | Harness | Spiral Wrap | Fire Resistant | UL94 V-2 UL1441 | 0.04 in | 1.02 mm | |||
MM Newman Corporation | Polyethylene (PE) | Chemical Resistant Solvent Resistant | 1.5 in | 38.1 mm | 0.03 in | 0.76 mm | Abrasion Resistant | 0.127 in | 3.23 mm | 100 ft | 30.48 m | -60 °C | 88 °C | Black | 4.78 mm | 0.188 in | Harness | Spiral Wrap | |||||
MM Newman Corporation | Nylon | Chemical Resistant Self Extinguishing Solvent Resistant | 1.5 in | 38.1 mm | 0.02 in | 0.51 mm | Abrasion Resistant | 0.147 in | 3.73 mm | 100 ft | 30.48 m | -40 °C | 121 °C | Black | 4.78 mm | 0.188 in | Harness | Spiral Wrap | UV Resistant | ||||
MM Newman Corporation | Nylon | Chemical Resistant Self Extinguishing Solvent Resistant | 1.5 in | 38.1 mm | 0.02 in | 0.51 mm | Abrasion Resistant | 0.147 in | 3.73 mm | 100 ft | 30.48 m | -40 °C | 121 °C | Natural | 4.78 mm | 0.188 in | Harness | Spiral Wrap |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 46.56 | |
| 10 | $ 37.09 | |||
Description
General part information
HT 3/16 Series
Spiral Wrap 0.188" (4.78mm) X 100' (30.48m) Black
