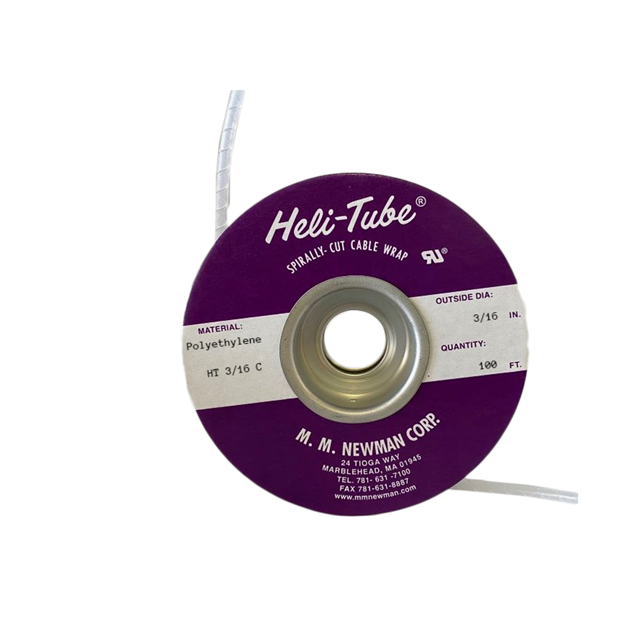

HT 3/16 C

Active

MM Newman Corporation

SPIRAL WRAP 0.127" X 100' NAT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HT 3/16 C

Active

MM Newman Corporation

SPIRAL WRAP 0.127" X 100' NAT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HT 3/16 C

Abrasion Protection	Abrasion Resistant
Color	Natural
Diameter - Inside, Expanded [diameter]	1.5 in
Diameter - Inside, Expanded [diameter]	38.1 mm
Diameter - Inside, Non-Expanded [diameter]	0.127 in
Diameter - Inside, Non-Expanded [diameter]	3.23 mm
Diameter - Outside, Non-Expanded [diameter]	4.75 mm
Diameter - Outside, Non-Expanded [diameter]	0.187 in
Features	Solvent Resistant, Chemical Resistant
Length	100 ft
Length	30.48 m
Material	Polyethylene (PE)
Operating Temperature [Max]	88 °C
Operating Temperature [Min]	-60 °C
Type	Spiral Wrap
Type Attributes	Harness
Wall Thickness [custom]	0.03 in
Wall Thickness [custom]	0.76 mm

HT 3/16 Series

Part	Material	Features	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Wall Thickness [custom]	Wall Thickness [custom]	Abrasion Protection	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Length	Length	Operating Temperature [Min]	Operating Temperature [Max]	Color	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Type Attributes	Type	Heat Protection	Environment Protection	Material Flammability Rating	Wall Thickness	Wall Thickness
MM Newman Corporation HT 3/16 C	Polyethylene (PE)	Chemical Resistant Solvent Resistant	1.5 in	38.1 mm	0.03 in	0.76 mm	Abrasion Resistant	0.127 in	3.23 mm	100 ft	30.48 m	-60 °C	88 °C	Natural	4.75 mm	0.187 in	Harness	Spiral Wrap
MM Newman Corporation HT 3/16 T	Polytetrafluoroethylene (PTFE)	Chemical Resistant Solvent Resistant	1.5 in	38.1 mm	0.03 in	0.76 mm	Abrasion Resistant	0.127 in	3.23 mm	100 ft	30.48 m	-268 °C	260 ░C	Natural	4.78 mm	0.188 in	Harness	Spiral Wrap	Fire Resistant	UV Resistant	UL VW-1 UL94 V-0
MM Newman Corporation HT 3/16 R	Polyethylene (PE)	Chemical Resistant Solvent Resistant	1.5 in	38.1 mm			Abrasion Resistant	0.107 in	2.72 mm	100 ft	30.48 m	-20 C	80 C	White	4.78 mm	0.188 in	Harness	Spiral Wrap	Fire Resistant		UL94 V-2 UL1441	0.04 in	1.02 mm
MM Newman Corporation HT 3/16 UR	Polyethylene (PE)	Chemical Resistant Solvent Resistant	1.5 in	38.1 mm	0.03 in	0.76 mm	Abrasion Resistant	0.127 in	3.23 mm	100 ft	30.48 m	-60 °C	88 °C	Black	4.78 mm	0.188 in	Harness	Spiral Wrap
MM Newman Corporation HT 3/16 N-B	Nylon	Chemical Resistant Self Extinguishing Solvent Resistant	1.5 in	38.1 mm	0.02 in	0.51 mm	Abrasion Resistant	0.147 in	3.73 mm	100 ft	30.48 m	-40 °C	121 °C	Black	4.78 mm	0.188 in	Harness	Spiral Wrap		UV Resistant
MM Newman Corporation HT 3/16 N	Nylon	Chemical Resistant Self Extinguishing Solvent Resistant	1.5 in	38.1 mm	0.02 in	0.51 mm	Abrasion Resistant	0.147 in	3.73 mm	100 ft	30.48 m	-40 °C	121 °C	Natural	4.78 mm	0.188 in	Harness	Spiral Wrap

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 40.13
		10	$ 31.33

Description

General part information

HT 3/16 Series

Spiral Wrap 0.187" (4.75mm) X 100' (30.48m) Natural
