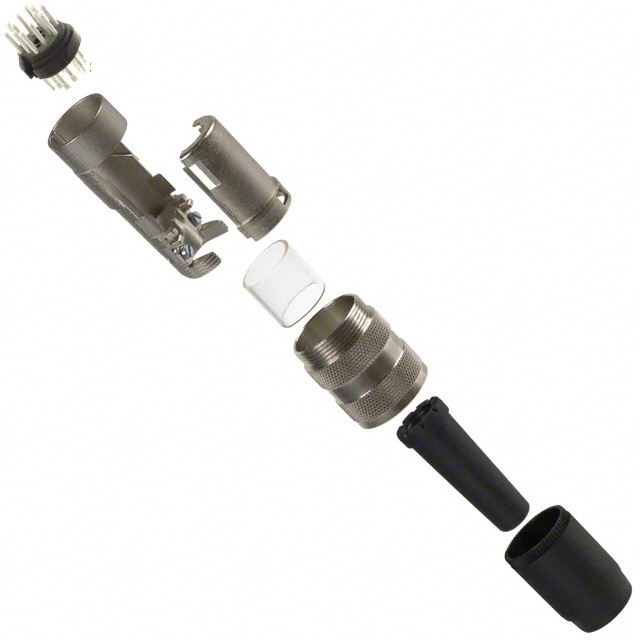

T3635001U

Active

Amphenol Tuchel Industrial

CONN PLUG MALE 12P SOLDER CUP

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLUG MALE 12P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Part	Shell Finish	Orientation	Shell Material	Shell Size - Insert	Number of Positions	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Feature	Voltage Rating	Shielding	Color	Current Rating (Amps)	Primary Material	Contact Finish - Mating	Ingress Protection	Features	Mounting Type	Termination	Material Flammability Rating
Amphenol Tuchel Industrial T3638009U	Nickel	Keyed	Die Cast	M16-12	12	Receptacle Female Sockets	100 °C	-40 °C	Bulkhead - Rear Side Nut	60 VDC	Shielded	Silver	3 A	Metal	Silver	IP40
Amphenol Tuchel Industrial T3635000U	Nickel	Keyed	Die Cast	M16-12	12	Male Pins Plug	100 °C	-40 °C		60 VDC	Shielded	Silver	3 A	Metal	Gold	IP40	Strain Relief	Free Hanging (In-Line)
Amphenol Tuchel Industrial T3638404U	Nickel	Keyed	Die Cast	M16-12	12	Receptacle Female Sockets	100 °C	-40 °C	Bulkhead - Front Side Nut	60 VDC	Shielded	Silver	3 A	Metal	Gold	IP40		Panel Mount Through Hole	Solder	UL94 V-0
Amphenol Tuchel Industrial T3635001U	Nickel	Keyed	Die Cast	M16-12	12	Male Pins Plug	100 °C	-40 °C		60 VDC	Shielded	Silver	3 A	Metal	Silver	IP40	Strain Relief	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Position Circular Connector Plug, Male Pins Solder Cup
