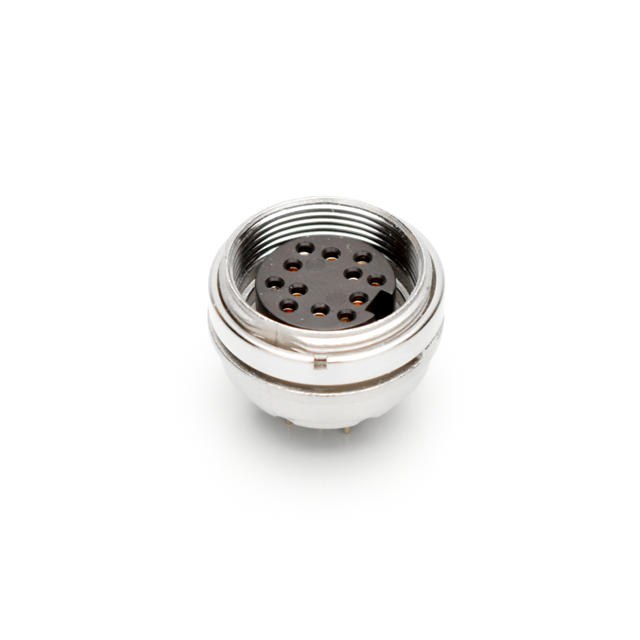

T3638404U

Active

Amphenol Tuchel Industrial

REAR MOUNTING FEMALE RECEPTACLE

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

REAR MOUNTING FEMALE RECEPTACLE

Technical Specifications

Parameters and characteristics for this part

Specification	T3638404U

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Current Rating (Amps)	3 A
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	12
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Die Cast
Shell Size - Insert	M16-12
Shielding	Shielded
Termination	Solder
Voltage Rating	60 VDC

Part	Shell Finish	Orientation	Shell Material	Shell Size - Insert	Number of Positions	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Feature	Voltage Rating	Shielding	Color	Current Rating (Amps)	Primary Material	Contact Finish - Mating	Ingress Protection	Features	Mounting Type	Termination	Material Flammability Rating
Amphenol Tuchel Industrial T3638009U	Nickel	Keyed	Die Cast	M16-12	12	Receptacle Female Sockets	100 °C	-40 °C	Bulkhead - Rear Side Nut	60 VDC	Shielded	Silver	3 A	Metal	Silver	IP40
Amphenol Tuchel Industrial T3635000U	Nickel	Keyed	Die Cast	M16-12	12	Male Pins Plug	100 °C	-40 °C		60 VDC	Shielded	Silver	3 A	Metal	Gold	IP40	Strain Relief	Free Hanging (In-Line)
Amphenol Tuchel Industrial T3638404U	Nickel	Keyed	Die Cast	M16-12	12	Receptacle Female Sockets	100 °C	-40 °C	Bulkhead - Front Side Nut	60 VDC	Shielded	Silver	3 A	Metal	Gold	IP40		Panel Mount Through Hole	Solder	UL94 V-0
Amphenol Tuchel Industrial T3635001U	Nickel	Keyed	Die Cast	M16-12	12	Male Pins Plug	100 °C	-40 °C		60 VDC	Shielded	Silver	3 A	Metal	Silver	IP40	Strain Relief	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Position Circular Connector Receptacle, Female Sockets Solder
