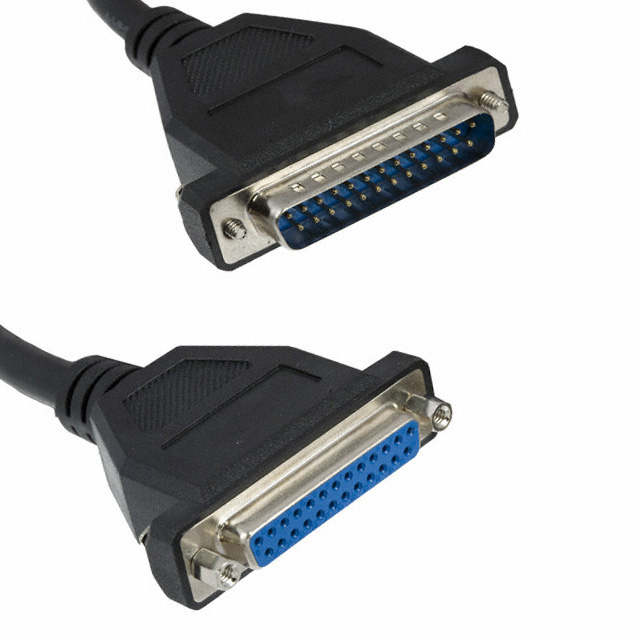

LDSUB-25-MF-CBL

Active

American Electrical Inc.

CABLE ASSY DB25 SHLD BLACK 2M

Search across all available documentation for this part.

Active

American Electrical Inc.

CABLE ASSY DB25 SHLD BLACK 2M

Technical Specifications

Parameters and characteristics for this part

Part	Shielding	1st Connector	Contact Finish	Length	Length	Number of Positions	Color	2nd Connector	Type	Control Side Connection [custom]	Control Side Connection [custom]	Current Rating (Per Contact)	Wire Gauge [Min]	Wire Gauge [Max]	Positions / Poles [custom]	Control Side Cable Retainer	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Process Side Connection	Length [x]	Length [x]	Positions / Poles
American Electrical Inc. LDSUB-9-MF-CBL	Shielded	Female Sockets Receptacle	Tin	10 ft	3.05 m	9	Black Individual (Round)	Plug Male Pins	DB9
American Electrical Inc. LDSUB-9-MF										D-Sub Female	D-Sub Male	1 A	14 AWG	22 AWG	9	Jackscrew Socket	-10 °C	50 °C	Terminal Blocks - Screw Connection
American Electrical Inc. LDSUB-15-MF-CBL	Shielded	Female Sockets Receptacle	Tin			15	Black Individual (Round)	Plug Male Pins	DB15											2 m	6.56 ft
American Electrical Inc. LDSUB-25-MF-CBL	Shielded	Female Sockets Receptacle	Tin				Black Individual (Round)	Plug Male Pins	DB25											2 m	6.56 ft
American Electrical Inc. LDSUB-25-MF										D-Sub Female	D-Sub Male	1 A	14 AWG	22 AWG		Jackscrew Socket	-10 °C	50 °C	Terminal Blocks - Screw Connection			25

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

D-Sub Cable Assembly DB25 Black, Individual (Round) 6.56' (2.00m) Receptacle, Female Sockets to Plug, Male Pins Shielded

Technical documentation and resources

No documents available
