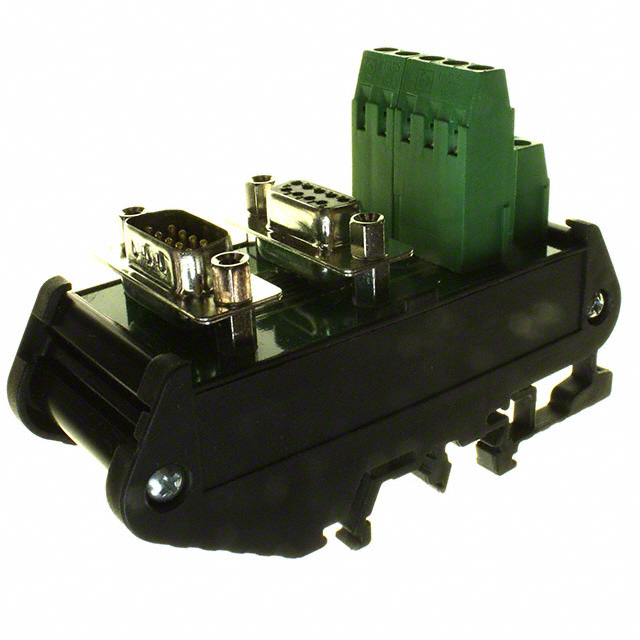

LDSUB-9-MF

Active

American Electrical Inc.

INTERFACE MOD DSUB 9POS 14-22AWG

Search across all available documentation for this part.

Active

American Electrical Inc.

INTERFACE MOD DSUB 9POS 14-22AWG

Technical Specifications

Parameters and characteristics for this part

Specification	LDSUB-9-MF

Control Side Cable Retainer	Jackscrew Socket
Control Side Connection [custom]	D-Sub, Female
Control Side Connection [custom]	D-Sub, Male
Current Rating (Per Contact)	1 A
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Positions / Poles [custom]	9
Process Side Connection	Terminal Blocks - Screw Connection
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	14 AWG

Part	Shielding	1st Connector	Contact Finish	Length	Length	Number of Positions	Color	2nd Connector	Type	Control Side Connection [custom]	Control Side Connection [custom]	Current Rating (Per Contact)	Wire Gauge [Min]	Wire Gauge [Max]	Positions / Poles [custom]	Control Side Cable Retainer	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Process Side Connection	Length [x]	Length [x]	Positions / Poles
American Electrical Inc. LDSUB-9-MF-CBL	Shielded	Female Sockets Receptacle	Tin	10 ft	3.05 m	9	Black Individual (Round)	Plug Male Pins	DB9
American Electrical Inc. LDSUB-9-MF										D-Sub Female	D-Sub Male	1 A	14 AWG	22 AWG	9	Jackscrew Socket	-10 °C	50 °C	Terminal Blocks - Screw Connection
American Electrical Inc. LDSUB-15-MF-CBL	Shielded	Female Sockets Receptacle	Tin			15	Black Individual (Round)	Plug Male Pins	DB15											2 m	6.56 ft
American Electrical Inc. LDSUB-25-MF-CBL	Shielded	Female Sockets Receptacle	Tin				Black Individual (Round)	Plug Male Pins	DB25											2 m	6.56 ft
American Electrical Inc. LDSUB-25-MF										D-Sub Female	D-Sub Male	1 A	14 AWG	22 AWG		Jackscrew Socket	-10 °C	50 °C	Terminal Blocks - Screw Connection			25

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position Interface Module Terminal Blocks - Screw Connection To D-Sub, Female and Male 14-22 AWG
