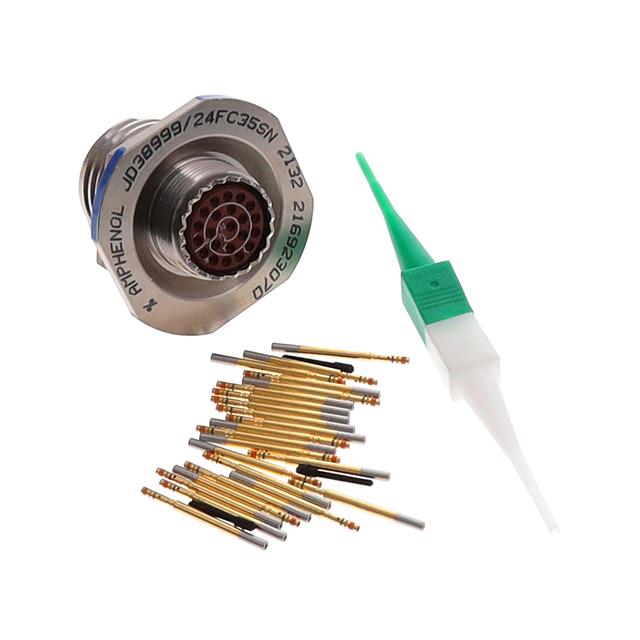

D38999/24FC35SN

Active

Amphenol Aerospace Operations

CONN RCPT FMALE 22POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/24FC35SN

Active

Amphenol Aerospace Operations

CONN RCPT FMALE 22POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/24FC35SN

Applications	Aviation, Aerospace, Marine, Military
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Grade	Military
Ingress Protection	Environment Resistant
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	22 positions
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Electroless Nickel
Shell Material	Aluminum
Shell Size - Insert [Max]	35
Shell Size - Insert [Min]	13
Shell Size, MIL	C
Shielding	Shielded
Termination	Crimp

D38999/24FC Series

Part	Shell Material	Shell Finish	Connector Type	Applications	Qualification	Shell Size, MIL	Number of Positions	Termination	Mounting Feature	Ingress Protection	Color	Primary Material	Shielding	Grade	Orientation	Shell Size - Insert	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Housing Color	Contact Size	Type	Note	Contact Shape	Contact Type	Features	Insert Material	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Contact Size
Amphenol Aerospace Operations D38999/24FC8JC	Aluminum	Electroless Nickel	Receptacle Female Sockets	Aviation Marine Military	MIL-DTL-38999 Series III	C	8	Crimp	Bulkhead - Front Side Nut	Environment Resistant	Silver	Metal	Shielded	Military	C	13-8	2.54 çm	100 çin	Copper Alloy	-65 ░C	200 °C	Gold
Amphenol Aerospace Operations D38999/24FC4SN-LC	Aluminum	Electroless Nickel	Receptacle Housing		MIL-DTL-38999 Series III	C	4		Bulkhead - Front Side Nut	Environment Resistant			Shielded	Military	N	13-4				-65 ░C	200 °C		Silver	16	For Female Sockets	Contacts Not Included	Circular	Crimp
Amphenol Aerospace Operations D38999/24FC98HN-LC	Aluminum	Electroless Nickel	Receptacle Housing		MIL-DTL-38999 Series III	C	10		Bulkhead - Front Side Nut	Environment Resistant			Shielded	Military	N					-65 ░C	200 °C		Silver	20	For Male Pins	Contacts Not Included	Circular	Crimp
Amphenol Aerospace Operations D38999/24FC98PN	Aluminum	Electroless Nickel	Male Pins Receptacle	Aerospace Aviation Marine Military	MIL-DTL-38999 Series III	C	10	Crimp	Bulkhead - Front Side Nut	Environment Resistant	Silver	Metal	Shielded	Military	N		1.27 µm	50 µin	Copper Alloy	-65 ░C	200 °C	Gold							Self Locking	Thermoplastic
Amphenol Aerospace Operations D38999/24FC35PN-LC	Aluminum	Electroless Nickel	Receptacle Housing		MIL-DTL-38999 Series III	C	22 positions		Bulkhead - Front Side Nut	Environment Resistant			Shielded	Military	N					-65 ░C	200 °C		Silver		For Male Pins	Contacts Not Included	Circular	Crimp			35	13	22D
Amphenol Aerospace Operations D38999/24FC4AN	Aluminum	Electroless Nickel	Receptacle Housing		MIL-DTL-38999 Series III	C	4		Bulkhead - Front Side Nut	Environment Resistant			Shielded	Military	N	13-4				-65 ░C	200 °C		Silver	16	For Male Pins	Contacts Not Included	Circular	Crimp
Amphenol Aerospace Operations D38999/24FC4HN-LC	Aluminum	Electroless Nickel	Receptacle Housing		MIL-DTL-38999 Series III	C	4		Bulkhead - Front Side Nut	Environment Resistant			Shielded	Military	N	13-4				-65 ░C	200 °C		Silver	16	For Male Pins	Contacts Not Included	Circular	Crimp
Amphenol Aerospace Operations D38999/24FC98HN	Aluminum	Electroless Nickel	Male Pins Receptacle	Aviation Marine Military	MIL-DTL-38999 Series III	C	10	Crimp	Bulkhead - Front Side Nut	Environment Resistant	Silver	Metal	Shielded	Military	N		2.54 çm	100 çin	Copper Alloy	-65 ░C	200 °C	Gold
Amphenol Aerospace Operations D38999/24FC4HN	Aluminum	Electroless Nickel	Male Pins Receptacle	Aviation Marine Military	MIL-DTL-38999 Series III	C	4	Crimp	Bulkhead - Front Side Nut	Environment Resistant	Silver	Metal	Shielded	Military	N	13-4	2.54 çm	100 çin	Copper Alloy	-65 ░C	200 °C	Gold
Amphenol Aerospace Operations D38999/24FC35SN	Aluminum	Electroless Nickel	Receptacle Female Sockets	Aerospace Aviation Marine Military	MIL-DTL-38999 Series III	C	22 positions	Crimp	Bulkhead - Front Side Nut	Environment Resistant	Silver	Metal	Shielded	Military	N		1.27 µm	50 µin	Copper Alloy	-65 ░C	200 °C	Gold									35	13

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 56.88
		10	$ 55.06
		25	$ 53.33
		50	$ 52.50
		100	$ 49.46
		250	$ 48.76
		500	$ 46.76
		1000	$ 45.52
	Bulk	1	$ 316.77
		10	$ 290.16
		25	$ 265.35

Description

General part information

D38999/24FC Series

22 Position Circular Connector Receptacle, Female Sockets Crimp
