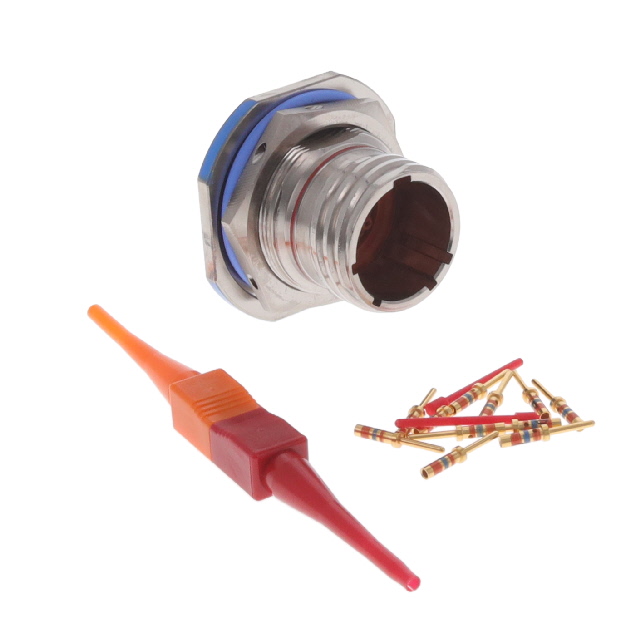

D38999/24FC98PN
ActiveAmphenol Aerospace Operations
CONN RCPT MALE 10POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
D38999/24FC98PN
ActiveAmphenol Aerospace Operations
CONN RCPT MALE 10POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | D38999/24FC98PN |
|---|---|
| Applications | Aviation, Aerospace, Marine, Military |
| Color | Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 1.27 µm |
| Contact Finish Thickness - Mating | 50 µin |
| Contact Material | Copper Alloy |
| Features | Self Locking |
| Grade | Military |
| Ingress Protection | Environment Resistant |
| Insert Material | Thermoplastic |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Positions | 10 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -65 ░C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-DTL-38999 Series III |
| Shell Finish | Electroless Nickel |
| Shell Material | Aluminum |
| Shell Size, MIL | C |
| Shielding | Shielded |
| Termination | Crimp |
D38999/24FC Series
| Part | Shell Material | Shell Finish | Connector Type | Applications | Qualification | Shell Size, MIL | Number of Positions | Termination | Mounting Feature | Ingress Protection | Color | Primary Material | Shielding | Grade | Orientation | Shell Size - Insert | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Housing Color | Contact Size | Type | Note | Contact Shape | Contact Type | Features | Insert Material | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Contact Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Aerospace Operations | Aluminum | Electroless Nickel | Receptacle Female Sockets | Aviation Marine Military | MIL-DTL-38999 Series III | C | 8 | Crimp | Bulkhead - Front Side Nut | Environment Resistant | Silver | Metal | Shielded | Military | C | 13-8 | 2.54 çm | 100 çin | Copper Alloy | -65 ░C | 200 °C | Gold | |||||||||||
Amphenol Aerospace Operations | Aluminum | Electroless Nickel | Receptacle Housing | MIL-DTL-38999 Series III | C | 4 | Bulkhead - Front Side Nut | Environment Resistant | Shielded | Military | N | 13-4 | -65 ░C | 200 °C | Silver | 16 | For Female Sockets | Contacts Not Included | Circular | Crimp | |||||||||||||
Amphenol Aerospace Operations | Aluminum | Electroless Nickel | Receptacle Housing | MIL-DTL-38999 Series III | C | 10 | Bulkhead - Front Side Nut | Environment Resistant | Shielded | Military | N | -65 ░C | 200 °C | Silver | 20 | For Male Pins | Contacts Not Included | Circular | Crimp | ||||||||||||||
Amphenol Aerospace Operations | Aluminum | Electroless Nickel | Male Pins Receptacle | Aerospace Aviation Marine Military | MIL-DTL-38999 Series III | C | 10 | Crimp | Bulkhead - Front Side Nut | Environment Resistant | Silver | Metal | Shielded | Military | N | 1.27 µm | 50 µin | Copper Alloy | -65 ░C | 200 °C | Gold | Self Locking | Thermoplastic | ||||||||||
Amphenol Aerospace Operations | Aluminum | Electroless Nickel | Receptacle Housing | MIL-DTL-38999 Series III | C | 22 positions | Bulkhead - Front Side Nut | Environment Resistant | Shielded | Military | N | -65 ░C | 200 °C | Silver | For Male Pins | Contacts Not Included | Circular | Crimp | 35 | 13 | 22D | ||||||||||||
Amphenol Aerospace Operations | Aluminum | Electroless Nickel | Receptacle Housing | MIL-DTL-38999 Series III | C | 4 | Bulkhead - Front Side Nut | Environment Resistant | Shielded | Military | N | 13-4 | -65 ░C | 200 °C | Silver | 16 | For Male Pins | Contacts Not Included | Circular | Crimp | |||||||||||||
Amphenol Aerospace Operations | Aluminum | Electroless Nickel | Receptacle Housing | MIL-DTL-38999 Series III | C | 4 | Bulkhead - Front Side Nut | Environment Resistant | Shielded | Military | N | 13-4 | -65 ░C | 200 °C | Silver | 16 | For Male Pins | Contacts Not Included | Circular | Crimp | |||||||||||||
Amphenol Aerospace Operations | Aluminum | Electroless Nickel | Male Pins Receptacle | Aviation Marine Military | MIL-DTL-38999 Series III | C | 10 | Crimp | Bulkhead - Front Side Nut | Environment Resistant | Silver | Metal | Shielded | Military | N | 2.54 çm | 100 çin | Copper Alloy | -65 ░C | 200 °C | Gold | ||||||||||||
Amphenol Aerospace Operations | Aluminum | Electroless Nickel | Male Pins Receptacle | Aviation Marine Military | MIL-DTL-38999 Series III | C | 4 | Crimp | Bulkhead - Front Side Nut | Environment Resistant | Silver | Metal | Shielded | Military | N | 13-4 | 2.54 çm | 100 çin | Copper Alloy | -65 ░C | 200 °C | Gold | |||||||||||
Amphenol Aerospace Operations | Aluminum | Electroless Nickel | Receptacle Female Sockets | Aerospace Aviation Marine Military | MIL-DTL-38999 Series III | C | 22 positions | Crimp | Bulkhead - Front Side Nut | Environment Resistant | Silver | Metal | Shielded | Military | N | 1.27 µm | 50 µin | Copper Alloy | -65 ░C | 200 °C | Gold | 35 | 13 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 51.76 | |
| 10 | $ 50.09 | |||
| 25 | $ 48.52 | |||
| 50 | $ 47.78 | |||
| 100 | $ 45.01 | |||
| 250 | $ 44.37 | |||
| 500 | $ 42.55 | |||
| 1000 | $ 41.41 | |||
| Bulk | 1 | $ 289.87 | ||
| 10 | $ 227.50 | |||
| 25 | $ 207.84 | |||
| 50 | $ 194.60 | |||
Description
General part information
D38999/24FC Series
10 Position Circular Connector Receptacle, Male Pins Crimp
