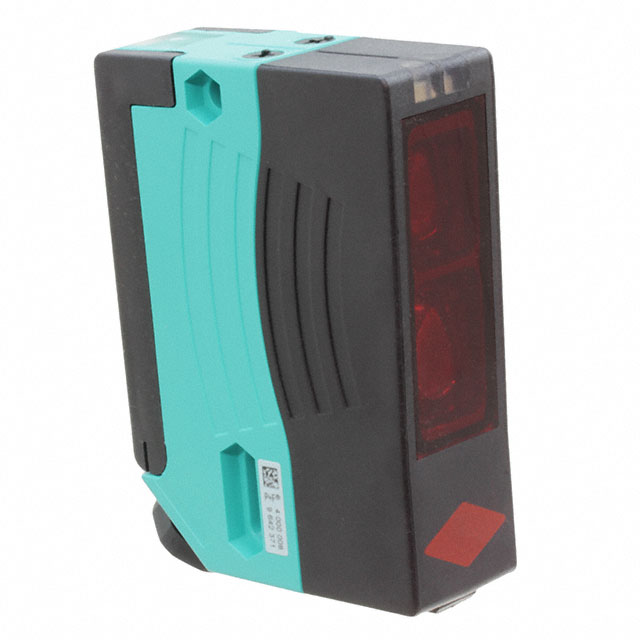

RLK28-8-H-2000-IR-Z/31/116

Active

PEPPERL+FUCHS

PHOTOELECTRIC SERIES 28 BACKGROUND SUPPRESSION

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

PHOTOELECTRIC SERIES 28 BACKGROUND SUPPRESSION

Technical Specifications

Parameters and characteristics for this part

Part	Sensing Method	Sensing Light	Sensing Distance	Sensing Distance	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Output Configuration	Mounting Type	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Min]	Sensing Distance [Max]	Response Time	Operating Temperature [Min]	Operating Temperature [Max]	Connection Method	Light Source	Ingress Protection
PEPPERL+FUCHS RLK28-55/31/116	Retroreflective	Infrared	669.29 in	17 m	Module	12 VAC/VDC	240 VAC/VDC	Dark-On Light-On	Chassis Mount
PEPPERL+FUCHS RLK28-8-H-2000-IR-Z/31/116	Diffuse					12 VAC	240 VAC	Light-On/Dark-On		2000 mm	20 mm	0.787 "	78.74 "	20 ms	-40 °C	60 °C	Cable with Connector	Infrared	IP67

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diffuse Optical Sensor 0.787" ~ 78.740" (20mm ~ 2m) Light-On/Dark-On
