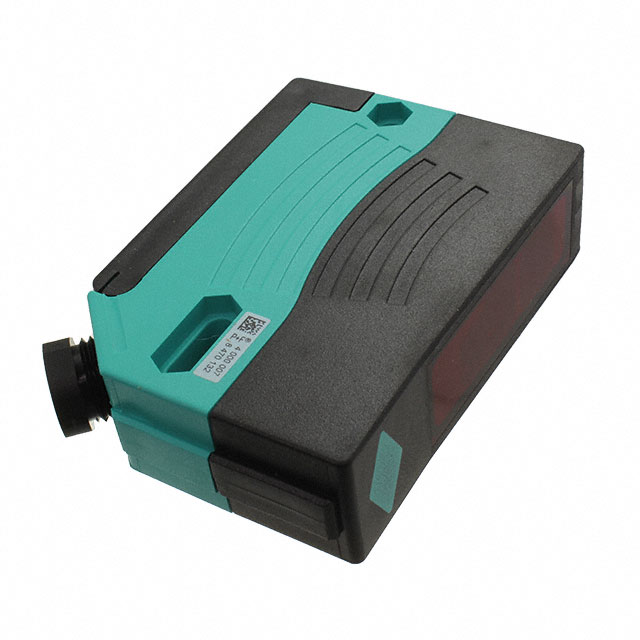

RLK28-55/31/116

Active

PEPPERL+FUCHS

PHOTOELECTRIC SENSOR, RLK SERIES, RETROREFLECTIVE, 17 M, RELAY, 12 V TO 240 V

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

PHOTOELECTRIC SENSOR, RLK SERIES, RETROREFLECTIVE, 17 M, RELAY, 12 V TO 240 V

Technical Specifications

Parameters and characteristics for this part

Part	Sensing Method	Sensing Light	Sensing Distance	Sensing Distance	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Output Configuration	Mounting Type	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Min]	Sensing Distance [Max]	Response Time	Operating Temperature [Min]	Operating Temperature [Max]	Connection Method	Light Source	Ingress Protection
PEPPERL+FUCHS RLK28-55/31/116	Retroreflective	Infrared	669.29 in	17 m	Module	12 VAC/VDC	240 VAC/VDC	Dark-On Light-On	Chassis Mount
PEPPERL+FUCHS RLK28-8-H-2000-IR-Z/31/116	Diffuse					12 VAC	240 VAC	Light-On/Dark-On		2000 mm	20 mm	0.787 "	78.74 "	20 ms	-40 °C	60 °C	Cable with Connector	Infrared	IP67

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Retroreflective Optical Sensor 669.29" (17m) Module

Technical documentation and resources
