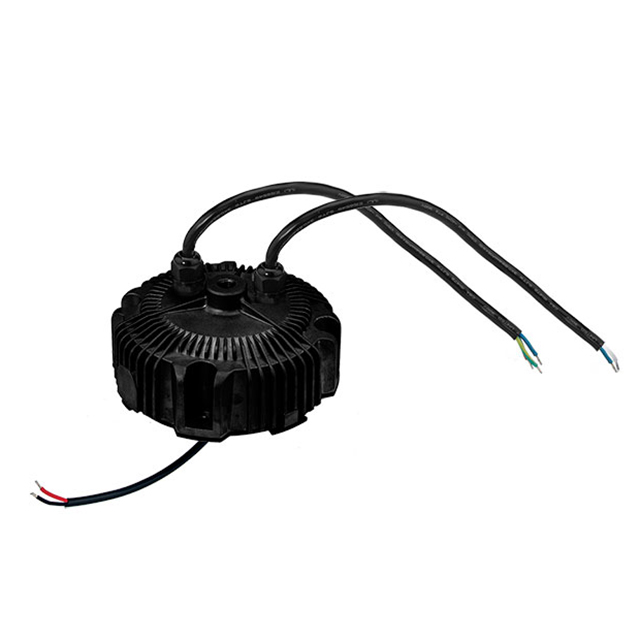

HBG-160-24
ActiveMEAN WELL USA Inc.
LED DVR CC/CV ACDC 14.4-24V 6.5A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HBG-160-24
ActiveMEAN WELL USA Inc.
LED DVR CC/CV ACDC 14.4-24V 6.5A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HBG-160-24 |
|---|---|
| Approval Agency | TUV, cURus, CB, CCC, CE |
| Current - Output (Max) [Max] | 6.5 A |
| Efficiency | 92 % |
| Features | OTP, SCP, OVP, OCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 156 W |
| Ratings | IP67 |
| Size / Dimension [diameter] | 151.7 mm |
| Size / Dimension [diameter] | 5.97 in |
| Size / Dimension [z] | 66.5 mm |
| Size / Dimension [z] | 2.62 in |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current, Voltage |
| Voltage - Input (Max) [Max] | 305 VAC |
| Voltage - Input (Min) [Min] | 90 VAC |
| Voltage - Isolation | 3750 V |
| Voltage - Output [Max] | 24 V |
| Voltage - Output [Min] | 14.4 V |
HBG-160 Series
| Part | Mounting Type | Current - Output (Max) [Max] | Approval Agency | Voltage - Isolation | Dimming | Efficiency | Voltage - Output [Min] | Voltage - Output [Max] | Number of Outputs | Voltage - Input (Max) [Max] | Power (Watts) | Size / Dimension [diameter] | Size / Dimension [z] | Size / Dimension [diameter] | Size / Dimension [z] | Type | Topology | Voltage - Input (Min) [Min] | Features | Termination Style | Ratings | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MEAN WELL USA Inc. | Chassis Mount | 4.4 A | CB CCC CE cURus ENEC | 3750 V | Analog PWM | 92 % | 21.6 V | 36 V | 1 | 305 VAC | 158 W | 124.6 mm | 34 mm | 4.91 in | 1.34 in | Constant Current Voltage | AC DC Converter | 90 VAC | OTP OVP SCP | Wire Leads | |||||
MEAN WELL USA Inc. | Chassis Mount | 2.6 A | CB CCC CE cURus ENEC | 3750 V | 93.5 % | 36 V | 60 VDC | 1 | 305 VAC | 156 W | 124.6 mm | 34 mm | 4.91 in | 1.34 in | Constant Current Voltage | AC DC Converter | 90 VAC | OTP OVP SCP | Wire Leads | ||||||
MEAN WELL USA Inc. | Chassis Mount | 2.6 A | CB CCC CE cURus TUV | 3750 V | 93.5 % | 36 V | 60 VDC | 1 | 305 VAC | 156 W | 151.7 mm | 66.5 mm | 5.97 in | 2.62 in | Constant Current Voltage | AC DC Converter | 90 VAC | OCP OTP OVP SCP | Wire Leads | IP65 | 85 °C | -40 °C | |||
MEAN WELL USA Inc. | Chassis Mount | 4.4 A | CB CCC CE cURus TUV | 3750 V | 92 % | 21.6 V | 36 V | 1 | 305 VAC | 158 W | 151.7 mm | 66.5 mm | 5.97 in | 2.62 in | Constant Current Voltage | AC DC Converter | 90 VAC | OCP OTP OVP SCP | Wire Leads | IP67 | 85 °C | -40 °C | |||
MEAN WELL USA Inc. | Chassis Mount | 3.3 A | CB CCC CE cURus TUV | 3750 V | 93 % | 1 | 305 VAC | 156 W | 151.7 mm | 66.5 mm | 5.97 in | 2.62 in | Constant Current Voltage | AC DC Converter | 90 VAC | OCP OTP OVP SCP | Wire Leads | IP65 | 85 °C | -40 °C | 48 V | ||||
MEAN WELL USA Inc. | Chassis Mount | 6.5 A | CB CCC CE cURus TUV | 3750 V | 92 % | 14.4 V | 24 V | 1 | 305 VAC | 156 W | 151.7 mm | 66.5 mm | 5.97 in | 2.62 in | Constant Current Voltage | AC DC Converter | 90 VAC | OCP OTP OVP SCP | Wire Leads | IP65 | 85 °C | -40 °C | |||
MEAN WELL USA Inc. | Chassis Mount | 2.6 A | CB CCC CE cURus TUV | 3750 V | Analog PWM | 92 % | 1 | 305 VAC | 156 W | 151.7 mm | 66.5 mm | 5.97 in | 2.62 in | Constant Current Voltage | AC DC Converter | 90 VAC | OCP OTP OVP SCP | Wire Leads | IP65 | 85 °C | -40 °C | 24 V | UL 8750 | ||
MEAN WELL USA Inc. | Chassis Mount | 2.6 A | CB CCC CE cURus EAC ENEC TUV | 3750 V | Analog PWM | 93.5 % | 1 | 305 VAC | 156 W | 151.7 mm | 66.5 mm | 5.97 in | 2.62 in | Constant Current Voltage | AC DC Converter | 90 VAC | OCP OTP OVP | Wire Leads | IP67 | 85 °C | -40 °C | 60 V | UL 8750 | ||
MEAN WELL USA Inc. | Chassis Mount | 6.5 A | CB CCC CE cURus TUV | 3750 V | 92 % | 14.4 V | 24 V | 1 | 305 VAC | 156 W | 151.7 mm | 66.5 mm | 5.97 in | 2.62 in | Constant Current Voltage | AC DC Converter | 90 VAC | OCP OTP OVP SCP | Wire Leads | IP67 | 85 °C | -40 °C | |||
MEAN WELL USA Inc. | Chassis Mount | 4.4 A | CB CCC CE cURus TUV | 3750 V | 92 % | 21.6 V | 36 V | 1 | 305 VAC | 158 W | 151.7 mm | 66.5 mm | 5.97 in | 2.62 in | Constant Current Voltage | AC DC Converter | 90 VAC | OCP OTP OVP SCP | Wire Leads | IP65 | 85 °C | -40 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 71.36 | |
| 5 | $ 65.25 | |||
| 10 | $ 62.77 | |||
| 25 | $ 59.64 | |||
Description
General part information
HBG-160 Series
6.5A 14.4 ~ 24V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
