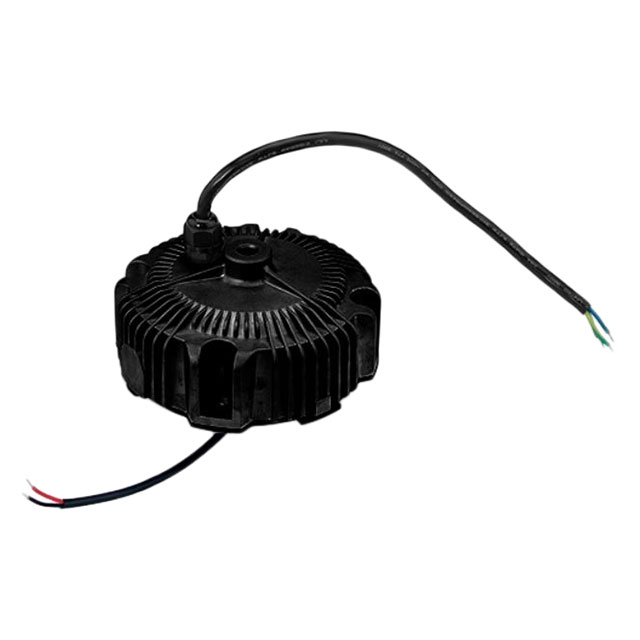

HBG-160-48AB

Active

MEAN WELL USA Inc.

O/P +48V3.3A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HBG-160-48AB

Active

MEAN WELL USA Inc.

O/P +48V3.3A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HBG-160-48AB

Approval Agency	TUV, cURus, CB, CCC, CE
Current - Output (Max) [Max]	3.3 A
Efficiency	93 %
Features	OTP, SCP, OVP, OCP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	156 W
Ratings	IP65
Size / Dimension [diameter]	151.7 mm
Size / Dimension [diameter]	5.97 in
Size / Dimension [z]	66.5 mm
Size / Dimension [z]	2.62 in
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current, Voltage
Voltage - Input (Max) [Max]	305 VAC
Voltage - Input (Min) [Min]	90 VAC
Voltage - Isolation	3750 V
Voltage - Output	48 V

HBG-160 Series

Part	Mounting Type	Current - Output (Max) [Max]	Approval Agency	Voltage - Isolation	Dimming	Efficiency	Voltage - Output [Min]	Voltage - Output [Max]	Number of Outputs	Voltage - Input (Max) [Max]	Power (Watts)	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [z]	Type	Topology	Voltage - Input (Min) [Min]	Features	Termination Style	Ratings	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output	Standard Number
MEAN WELL USA Inc. HBG-160P-36B	Chassis Mount	4.4 A	CB CCC CE cURus ENEC	3750 V	Analog PWM	92 %	21.6 V	36 V	1	305 VAC	158 W	124.6 mm	34 mm	4.91 in	1.34 in	Constant Current Voltage	AC DC Converter	90 VAC	OTP OVP SCP	Wire Leads
MEAN WELL USA Inc. HBG-160P-60A	Chassis Mount	2.6 A	CB CCC CE cURus ENEC	3750 V		93.5 %	36 V	60 VDC	1	305 VAC	156 W	124.6 mm	34 mm	4.91 in	1.34 in	Constant Current Voltage	AC DC Converter	90 VAC	OTP OVP SCP	Wire Leads
MEAN WELL USA Inc. HBG-160-60A	Chassis Mount	2.6 A	CB CCC CE cURus TUV	3750 V		93.5 %	36 V	60 VDC	1	305 VAC	156 W	151.7 mm	66.5 mm	5.97 in	2.62 in	Constant Current Voltage	AC DC Converter	90 VAC	OCP OTP OVP SCP	Wire Leads	IP65	85 °C	-40 °C
MEAN WELL USA Inc. HBG-160-36	Chassis Mount	4.4 A	CB CCC CE cURus TUV	3750 V		92 %	21.6 V	36 V	1	305 VAC	158 W	151.7 mm	66.5 mm	5.97 in	2.62 in	Constant Current Voltage	AC DC Converter	90 VAC	OCP OTP OVP SCP	Wire Leads	IP67	85 °C	-40 °C
MEAN WELL USA Inc. HBG-160-48AB	Chassis Mount	3.3 A	CB CCC CE cURus TUV	3750 V		93 %			1	305 VAC	156 W	151.7 mm	66.5 mm	5.97 in	2.62 in	Constant Current Voltage	AC DC Converter	90 VAC	OCP OTP OVP SCP	Wire Leads	IP65	85 °C	-40 °C	48 V
MEAN WELL USA Inc. HBG-160-24A	Chassis Mount	6.5 A	CB CCC CE cURus TUV	3750 V		92 %	14.4 V	24 V	1	305 VAC	156 W	151.7 mm	66.5 mm	5.97 in	2.62 in	Constant Current Voltage	AC DC Converter	90 VAC	OCP OTP OVP SCP	Wire Leads	IP65	85 °C	-40 °C
MEAN WELL USA Inc. HBG-160-24DA	Chassis Mount	2.6 A	CB CCC CE cURus TUV	3750 V	Analog PWM	92 %			1	305 VAC	156 W	151.7 mm	66.5 mm	5.97 in	2.62 in	Constant Current Voltage	AC DC Converter	90 VAC	OCP OTP OVP SCP	Wire Leads	IP65	85 °C	-40 °C	24 V	UL 8750
MEAN WELL USA Inc. HBG-160-60DA	Chassis Mount	2.6 A	CB CCC CE cURus EAC ENEC TUV	3750 V	Analog PWM	93.5 %			1	305 VAC	156 W	151.7 mm	66.5 mm	5.97 in	2.62 in	Constant Current Voltage	AC DC Converter	90 VAC	OCP OTP OVP	Wire Leads	IP67	85 °C	-40 °C	60 V	UL 8750
MEAN WELL USA Inc. HBG-160-24	Chassis Mount	6.5 A	CB CCC CE cURus TUV	3750 V		92 %	14.4 V	24 V	1	305 VAC	156 W	151.7 mm	66.5 mm	5.97 in	2.62 in	Constant Current Voltage	AC DC Converter	90 VAC	OCP OTP OVP SCP	Wire Leads	IP67	85 °C	-40 °C
MEAN WELL USA Inc. HBG-160-36A	Chassis Mount	4.4 A	CB CCC CE cURus TUV	3750 V		92 %	21.6 V	36 V	1	305 VAC	158 W	151.7 mm	66.5 mm	5.97 in	2.62 in	Constant Current Voltage	AC DC Converter	90 VAC	OCP OTP OVP SCP	Wire Leads	IP65	85 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	8	$ 60.60

Description

General part information

HBG-160 Series

3.3A 48V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
