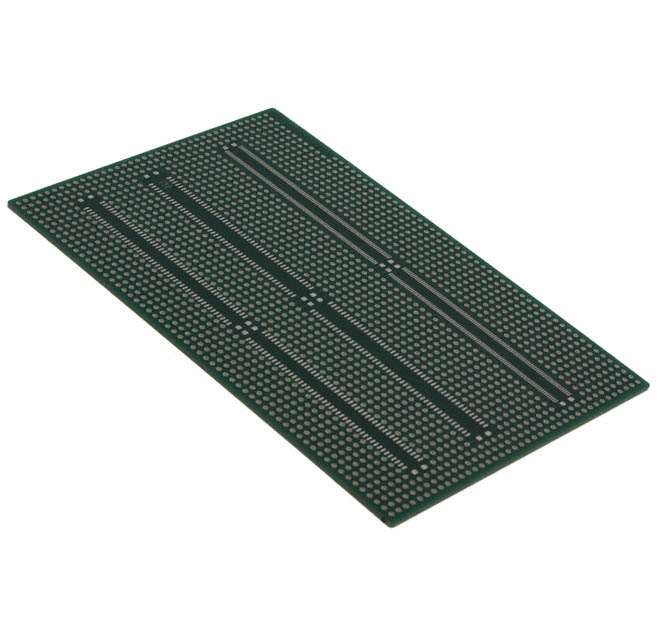

8100-SMT8-LF

Active

TWIN INDUSTRIES

ADAPTER BOARD SMT SOIC MED/TINY

Search across all available documentation for this part.

Active

TWIN INDUSTRIES

ADAPTER BOARD SMT SOIC MED/TINY

Technical Specifications

Parameters and characteristics for this part

Specification	8100-SMT8-LF

Package Accepted	SOIC
Proto Board Type	SMD to Plated Through Hole Board
Size / Dimension [x]	152.4 mm
Size / Dimension [x]	6 in
Size / Dimension [y]	101.6 mm
Size / Dimension [y]	4 "

Part	Board Thickness	Board Thickness	Board Thickness	Hole Diameter [diameter]	Hole Diameter [diameter]	Circuit Pattern	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Pitch [x]	Pitch [x]	Proto Board Type	Package Accepted	Size / Dimension [y]
TWIN INDUSTRIES 8100-45-LF	0.062 in	0.0625 in	1.57 mm	0.037 in	0.94 mm	Pad Per Hole (Round)	5 in	127 mm	4 "	101.6 mm	2.54 mm	0.1 in	Breadboard General Purpose
TWIN INDUSTRIES 8100-SMT10	0.062 in	0.0625 in	1.57 mm				6 in	152.4 mm	4 "		0.5 mm	0.02 in	SMD to Plated Through Hole Board	TSSOP	101.6 mm
TWIN INDUSTRIES 8100-SMT9	0.062 in	0.0625 in	1.57 mm				7.9 in	200.66 mm	3.1 in	78.74 mm			SMD to DIP	PSOP SSOP TSOP
TWIN INDUSTRIES 8100-SMT8	0.062 in	0.0625 in	1.57 mm				6 in	152.4 mm	4 "		0.5 mm	0.02 in	SMD to Plated Through Hole Board	SOIC	101.6 mm
TWIN INDUSTRIES 8100-SMT7	0.062 in	0.0625 in	1.57 mm				4.2 "	106.68 mm	4.2 "	106.68 mm			SMD to Plated Through Hole Board	SOIC
TWIN INDUSTRIES 8100-SMT11	0.062 in	0.0625 in	1.57 mm				6 in	152.4 mm	4 "				SMD to Plated Through Hole Board	QFP	101.6 mm
TWIN INDUSTRIES 8100-SMT8-LF							6 in	152.4 mm	4 "				SMD to Plated Through Hole Board	SOIC	101.6 mm
TWIN INDUSTRIES 8100-SMT10-LF							6 in	152.4 mm	4 "				SMD to Plated Through Hole Board	TSSOP	101.6 mm
TWIN INDUSTRIES 8100-4565	0.062 in	0.0625 in	1.57 mm	0.037 in	0.94 mm	Pad Per Hole (Round)	6.5 in	165.1 mm	4.5 in	114.3 mm	2.54 mm	0.1 in	Breadboard General Purpose
TWIN INDUSTRIES 8100-SMT14							6 in	152.4 mm	4 "				SMD to Plated Through Hole Board	TQFP	101.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

ADAPTER BOARD SMT SOIC MED/TINY
