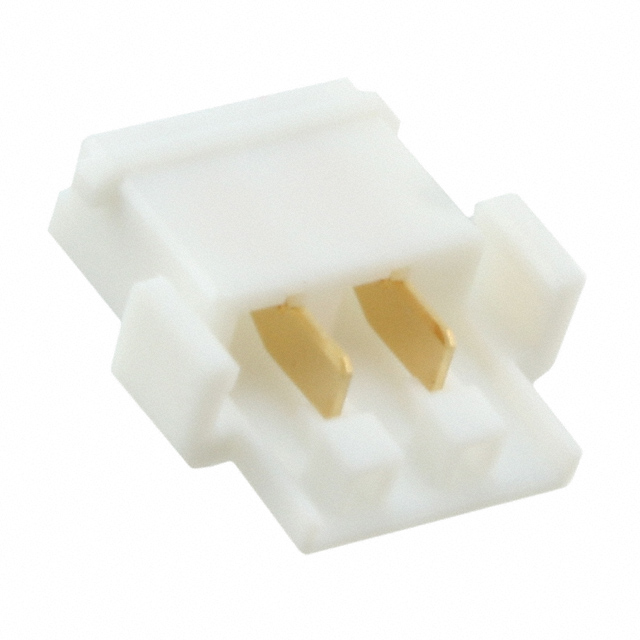

DF59-2P-2SP(50)

Active

Hirose Electric USA, Inc.

CONN SSL PLUG 2POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDF59 Series Flyer

DF59-2P-2SP(50)

Active

Hirose Electric USA, Inc.

CONN SSL PLUG 2POS 2MM

Deep-Dive with AI

DocumentsDF59 Series Flyer

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF59-2P-2SP(50)

Connector Type	Plug
Contact Finish	Gold
Contact Material	Brass
Current Rating (Amps)	3 A
Housing Color	Natural
Housing Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-35 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Style	Terminator (Shorting)
Voltage Rating	230 V

DF59 Series

Part	Mounting Type	Number of Positions	Termination	Connector Type	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Current Rating (Amps)	Contact Finish	Housing Color	Pitch [x]	Pitch [x]	Housing Material	Style	Mating Cycles	Wire Gauge [Max]	Wire Gauge [Min]	Features	Wire Gauge
Hirose Electric USA, Inc. DF59S-1S-V(24)	Surface Mount Right Angle	1	Solder	Contact Socket	Phosphor Bronze	-35 °C	105 ░C	350 V	3 A	Tin
Hirose Electric USA, Inc. DF59-3P-2FC(50)	Push Mount Snap-In			Adapter Bridge	Brass	-35 °C	105 ░C	230 V	3 A	Gold	Natural	0.079 in	2 mm	Polybutylene Terephthalate (PBT)
Hirose Electric USA, Inc. DF59-4P-2FC(50)	Push Mount Snap-In	4		Adapter Bridge	Brass	-35 °C	105 ░C	230 V	3 A	Gold	Natural	0.079 in	2 mm	Polybutylene Terephthalate (PBT)
Hirose Electric USA, Inc. DF59M-2224PC	Free Hanging (In-Line)		Crimp	Contact Plug	Copper Alloy	-40 °C	105 ░C	300 VDC	6 A	Tin					Board to Cable/Wire	20	24 AWG	22 AWG
Hirose Electric USA, Inc. DF59-4S-2V(51)	Surface Mount Right Angle	4	Solder	Receptacle	Phosphor Bronze	-35 °C	105 ░C	230 V	3 A	Gold	Natural	0.079 in	2 mm	Liquid Crystal Polymer (LCP)	Board to Board Cable				Solder Retention
Hirose Electric USA, Inc. DF59-3S-2V(51)	Surface Mount Right Angle		Solder	Receptacle	Phosphor Bronze	-35 °C	105 ░C	230 V	3 A	Gold	Natural	0.079 in	2 mm	Liquid Crystal Polymer (LCP)	Board to Board Cable				Solder Retention
Hirose Electric USA, Inc. DF59-2S-2V(51)	Surface Mount Right Angle	2	Solder	Receptacle	Phosphor Bronze	-35 °C	105 ░C	230 V	3 A	Gold	Natural	0.079 in	2 mm	Liquid Crystal Polymer (LCP)	Board to Board Cable				Solder Retention
Hirose Electric USA, Inc. DF59M-1S-H(21)	Surface Mount	1	Solder	Receptacle		-40 °C	105 ░C	300 VDC	6 A		Silver			Copper Alloy	Board to Cable/Wire	20
Hirose Electric USA, Inc. DF59-22PCA	Free Hanging (In-Line)	1	Crimp	Contact Plug	Phosphor Bronze	-35 °C	105 ░C	230 V	3 A	Gold					Board to Cable/Wire					22 AWG
Hirose Electric USA, Inc. DF59-2P-2SP(50)	Free Hanging (In-Line)	2		Plug	Brass	-35 °C	105 ░C	230 V	3 A	Gold	Natural	0.079 in	2 mm	Polybutylene Terephthalate (PBT)	Terminator (Shorting)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.56
		10	$ 0.98
		100	$ 0.73
		500	$ 0.67
		1000	$ 0.55
		2000	$ 0.52
		4900	$ 0.51
		9800	$ 0.50

Description

General part information

DF59 Series

SSL Connector 2 Position Plug Terminator (Shorting) 0.079" (2.00mm)

Documents

Technical documentation and resources

DF59 Series Flyer

Datasheet
