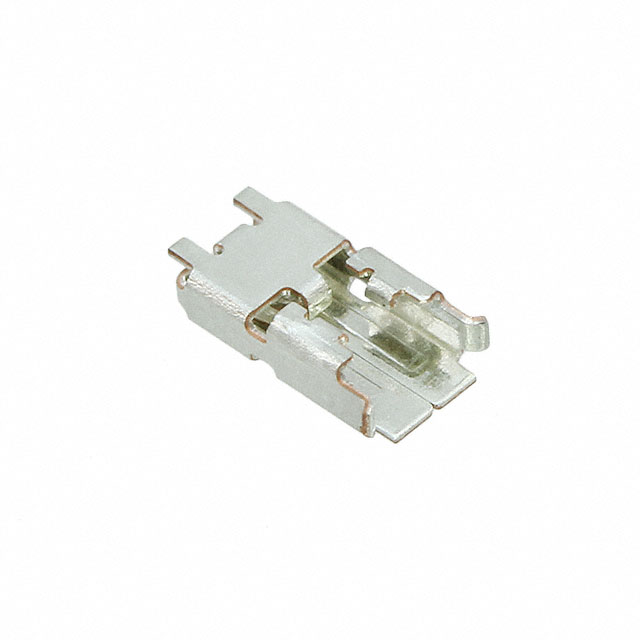

DF59M-1S-H(21)
ActiveHirose Electric USA, Inc.
RECEPTACLE HOUSING, 1POS, SMT
Deep-Dive with AI
Search across all available documentation for this part.
DF59M-1S-H(21)
ActiveHirose Electric USA, Inc.
RECEPTACLE HOUSING, 1POS, SMT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DF59M-1S-H(21) |
|---|---|
| Connector Type | Receptacle |
| Current Rating (Amps) | 6 A |
| Housing Color | Silver |
| Housing Material | Copper Alloy |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount |
| Number of Positions | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 300 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.30 | |
| 10 | $ 0.25 | |||
| 100 | $ 0.20 | |||
| 500 | $ 0.17 | |||
| 1000 | $ 0.14 | |||
| 5000 | $ 0.12 | |||
| Digi-Reel® | 1 | $ 0.30 | ||
| 10 | $ 0.25 | |||
| 100 | $ 0.20 | |||
| 500 | $ 0.17 | |||
| 1000 | $ 0.14 | |||
| 5000 | $ 0.12 | |||
| Tape & Reel (TR) | 10000 | $ 0.11 | ||
| 20000 | $ 0.11 | |||
| 30000 | $ 0.11 | |||
| 50000 | $ 0.10 | |||
| Newark | Each (Supplied on Full Reel) | 10000 | $ 0.10 | |
| 20000 | $ 0.10 | |||
| 40000 | $ 0.10 | |||
| 60000 | $ 0.10 | |||
Description
General part information
DF59 Series
SSL Connector 1 Position Receptacle Board to Cable/Wire Solder
