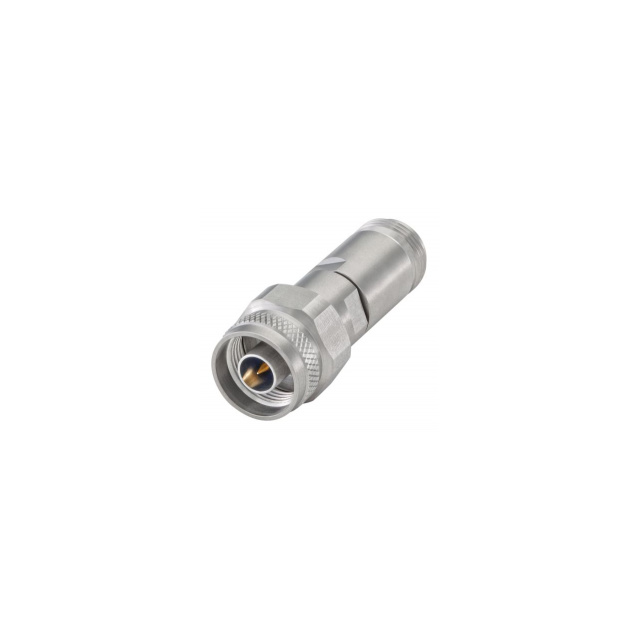

05S121-K20S3

Active

Rosenberger

PRECISION N TYPE CALIBRATION ADA

Search across all available documentation for this part.

Active

Rosenberger

PRECISION N TYPE CALIBRATION ADA

Technical Specifications

Parameters and characteristics for this part

Specification	05S121-K20S3

Accessory Type	Calibration Adapter
For Use With/Related Products	Network Analyzer
Specifications	N Type 50Ohm Jack, Plug
Type	Specialized

Part	Fastening Type	Impedance	Connector Style	Frequency - Max [Max]	Contact Termination	Voltage Rating	Number of Ports	Body Material	Mounting Type	Dielectric Material	Center Contact Plating	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Shield Termination	Center Contact Material	Mating Cycles	Specifications	Type	Accessory Type	For Use With/Related Products
Rosenberger 05S121-272S3	Push-Pull	50 Ohms	N Type	18 GHz	Solder	335 V	1	Stainless Steel	Free Hanging (In-Line)	Polyphenylene Ether (PPE)	Gold	85 °C	-40 °C	Male Pin Plug	Solder	Beryllium Copper	500
Rosenberger 05S121-S20S3																		N Type 50Ohm Plug	Specialized	Calibration Adapter	Network Analyzer
Rosenberger 05S121-K20S3																		N Type 50Ohm Jack Plug	Specialized	Calibration Adapter	Network Analyzer

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 919.53

General part information

Specialized Calibration Adapter for use with Network Analyzer

Technical documentation and resources
