05S121-272S3
ActiveRosenberger

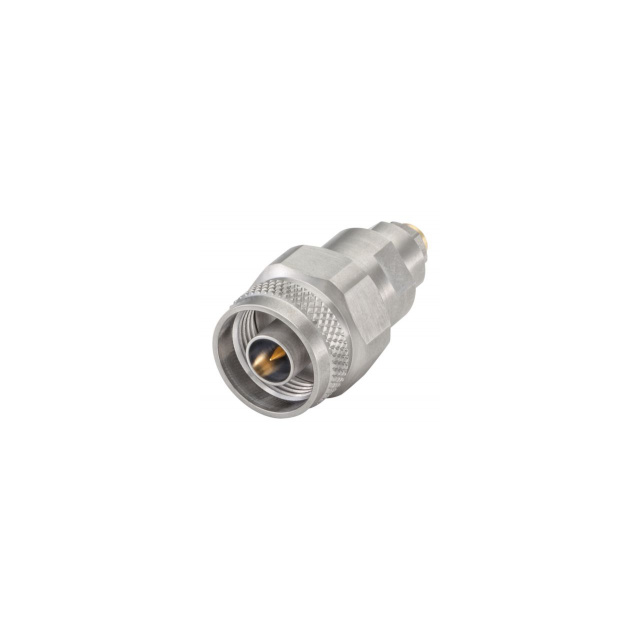

PRECISION N TYPE STRAIGHT PLUG
Deep-Dive with AI
Search across all available documentation for this part.
05S121-272S3
ActiveRosenberger
PRECISION N TYPE STRAIGHT PLUG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 05S121-272S3 |
|---|---|
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | N Type |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polyphenylene Ether (PPE) |
| Fastening Type | Push-Pull |
| Frequency - Max [Max] | 18 GHz |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Solder |
| Voltage Rating | 335 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 268.48 | |
| 10 | $ 210.58 | |||
| 25 | $ 192.32 | |||
| 50 | $ 180.03 | |||
Description
General part information
05S121 Series
N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
