9852-05-00

Active

Coto Technology

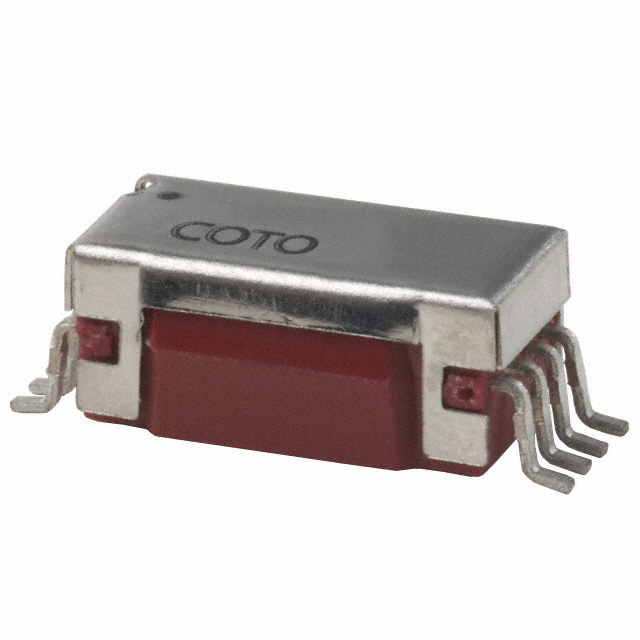

REED RELAY, SPDT, 5 VDC, 9852 SERIES, SURFACE MOUNT, 110 OHM, 100 MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

9852-05-00

Active

Coto Technology

REED RELAY, SPDT, 5 VDC, 9852 SERIES, SURFACE MOUNT, 110 OHM, 100 MA

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9852-05-00

Coil Current	45.5 mA
Coil Resistance	110 Ohms
Coil Type	Non Latching
Coil Voltage	5 VDC
Contact Form	SPDT (1 Form C)
Contact Rating (Current)	100 mA
Features	Magnetic Shield
Mounting Type	Surface Mount
Must Operate Voltage	3.8 VDC
Must Release Voltage	0.4 VDC
Operate Time	1 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Release Time	1 ms
Switching Voltage	30 VAC, 30 VDC
Termination Style	Gull Wing

9852 Series

Part	Features	Contact Form	Must Release Voltage	Coil Voltage	Must Operate Voltage	Termination Style	Coil Resistance	Switching Voltage	Coil Type	Release Time	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Rating (Current)	Operate Time	Coil Current
Coto Technology 9852-05-00	Magnetic Shield	SPDT (1 Form C)	0.4 VDC	5 VDC	3.8 VDC	Gull Wing	110 Ohms	30 VAC 30 VDC	Non Latching	1 ms	Surface Mount	85 °C	-20 C	100 mA	1 ms	45.5 mA
Coto Technology 9852-05-00TR	Magnetic Shield	SPDT (1 Form C)	0.4 VDC	5 VDC	3.8 VDC	Gull Wing	110 Ohms	30 VAC 30 VDC	Non Latching	1 ms	Surface Mount	85 °C	-20 C	100 mA	1 ms	45.5 mA
Coto Technology 9852-05-20	Magnetic Shield	SPDT (1 Form C)	0.4 VDC	5 VDC	3.8 VDC	J Lead	110 Ohms	30 VAC 30 VDC	Non Latching	1 ms	Surface Mount	85 °C	-20 C	100 mA	1 ms	45.5 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 52.10
		10	$ 45.51
		25	$ 43.12
		50	$ 41.40
		100	$ 39.75
		250	$ 37.67
Newark	Each	250	$ 39.83

Description

General part information

9852 Series

The 9852-05-00 is a surface mount Reed Relay with gull wing lead style. This 9852-series relay has SPDT hermetically sealed contact for long life. Ideally suited to the needs of automated test equipment, instrumentation and telecommunications requirements. The external magnetic shield reduces interaction between parts in high density boards. Small size plus added features allow for high density packing and make these relays ideal for designs such as high speed, high pin count VLSI testers where high speed, small size and high performance are all needed.
