9852-05-20

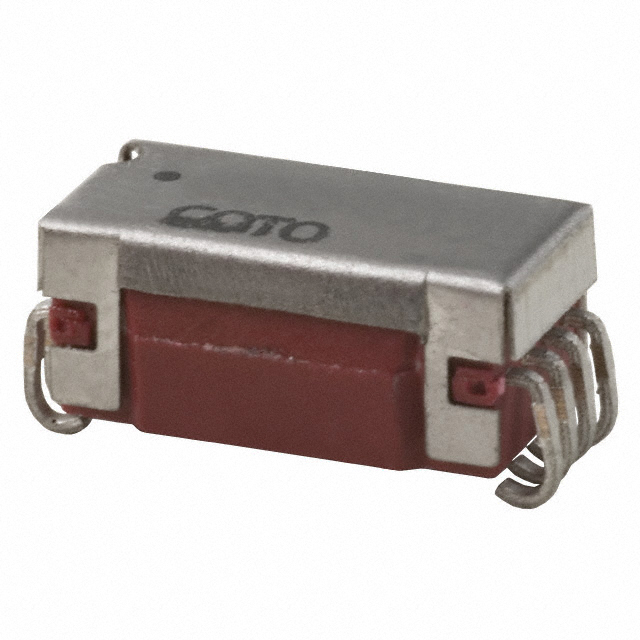

ActiveREED RELAY, SPDT, 5 VDC, 9852 SERIES, SURFACE MOUNT, 110 OHM, 100 MA
Deep-Dive with AI
Search across all available documentation for this part.
9852-05-20
ActiveREED RELAY, SPDT, 5 VDC, 9852 SERIES, SURFACE MOUNT, 110 OHM, 100 MA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9852-05-20 |
|---|---|
| Coil Current | 45.5 mA |
| Coil Resistance | 110 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 5 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 100 mA |
| Features | Magnetic Shield |
| Mounting Type | Surface Mount |
| Must Operate Voltage | 3.8 VDC |
| Must Release Voltage | 0.4 VDC |
| Operate Time | 1 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Release Time | 1 ms |
| Switching Voltage | 30 VAC, 30 VDC |
| Termination Style | J Lead |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
9852 Series
The 9852-05-20 is a surface mount Reed Relay with J-lead style. This 9852-series relay has SPDT hermetically sealed contact for long life. Miniature surface mount reed relay that combines small size with exceptional RF performance. The external magnetic shield reduces interaction between parts in high density boards. Ideal for designs such as high speed, high pin count VLSI testers where high speed, small size and high performance are all needed.
