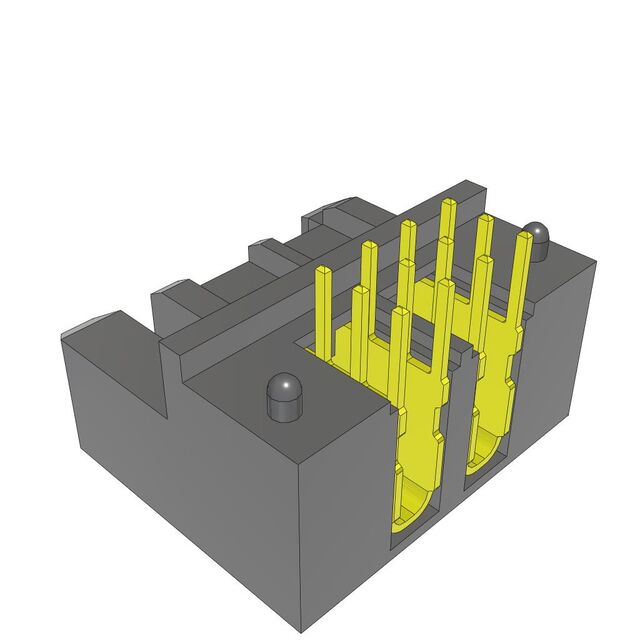

UPS-02-01-01-L-RA - UPS-02-01-01-L-RA

UPS-02-01-01-L-RA

Active
Samtec Inc.

CONN RCPT 2POS 3.81MM R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

Documents.150" PowerStrip™/20 A Dual Blade Power Socket StripDatasheet+3
UPS-02-01-01-L-RA - UPS-02-01-01-L-RA

UPS-02-01-01-L-RA

Active
Samtec Inc.

CONN RCPT 2POS 3.81MM R/A SLDR

Deep-Dive with AI

Documents.150" PowerStrip™/20 A Dual Blade Power Socket StripDatasheet+3

Technical Specifications

Parameters and characteristics for this part

SpecificationUPS-02-01-01-L-RA
ColorBlack
Connector TypeReceptacle, Female Blade Sockets
Contact FinishGold
Contact Finish Thickness10 Áin
Contact Finish Thickness0.25 Ám
Contact MaterialBeryllium Copper
Current Rating (Amps)20 A
FeaturesBoard Guide
Material - InsulationLiquid Crystal Polymer (LCP)
Mounting TypeThrough Hole, Right Angle
Number of Positions2
Number of Rows1
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Pitch [x]0.15 in
Pitch [x]3.81 mm
TerminationSolder
Voltage Rating620 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 39$ 4.47

Description

General part information

UPS-02 Series

2 Position Receptacle, Female Blade Sockets Connector Solder 0.150" (3.81mm) Through Hole, Right Angle
