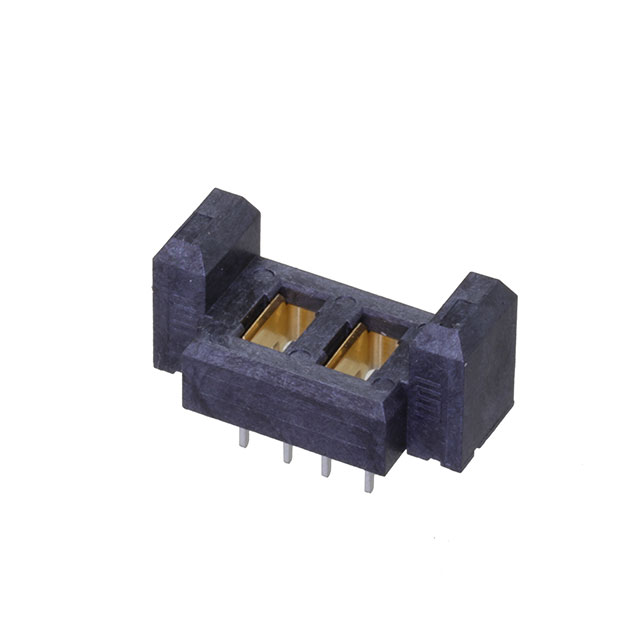

UPS-02-04.0-01-L-V

Active

Samtec Inc.

CONN RCPT 2POS 3.81MM PCB SLDR

Search across all available documentation for this part.

Active

Samtec Inc.

CONN RCPT 2POS 3.81MM PCB SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	UPS-02-04.0-01-L-V

Color	Black
Connector Type	Receptacle, Female Blade Sockets
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Beryllium Copper
Current Rating (Amps)	20 A
Features	Board Guide
Material - Insulation	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.15 in
Pitch [x]	3.81 mm
Termination	Solder
Voltage Rating	620 V

Part	Contact Material	Termination	Mounting Type	Number of Rows	Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Current Rating (Amps)	Number of Positions	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Material - Insulation	Voltage Rating	Pitch [x]	Pitch [x]	Features
Samtec Inc. UPS-02-07.0-01-L-V	Beryllium Copper	Solder	Through Hole	1	Black	-55 °C	125 °C	Gold	20 A	2	Receptacle Female Blade Sockets	10 Áin	0.25 Ám	Liquid Crystal Polymer (LCP)	530 V	0.15 in	3.81 mm
Samtec Inc. UPS-02-01-01-L-RA	Beryllium Copper	Solder	Through Hole Right Angle	1	Black	-55 °C	125 °C	Gold	20 A	2	Receptacle Female Blade Sockets	10 Áin	0.25 Ám	Liquid Crystal Polymer (LCP)	620 V	0.15 in	3.81 mm	Board Guide
Samtec Inc. UPS-02-04.0-01-L-V	Beryllium Copper	Solder	Through Hole	1	Black	-55 °C	125 °C	Gold	20 A	2	Receptacle Female Blade Sockets	10 Áin	0.25 Ám	Liquid Crystal Polymer (LCP)	620 V	0.15 in	3.81 mm	Board Guide

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Receptacle, Female Blade Sockets Connector Solder 0.150" (3.81mm) Through Hole
