19200160546
ActiveHARTING Technology Group

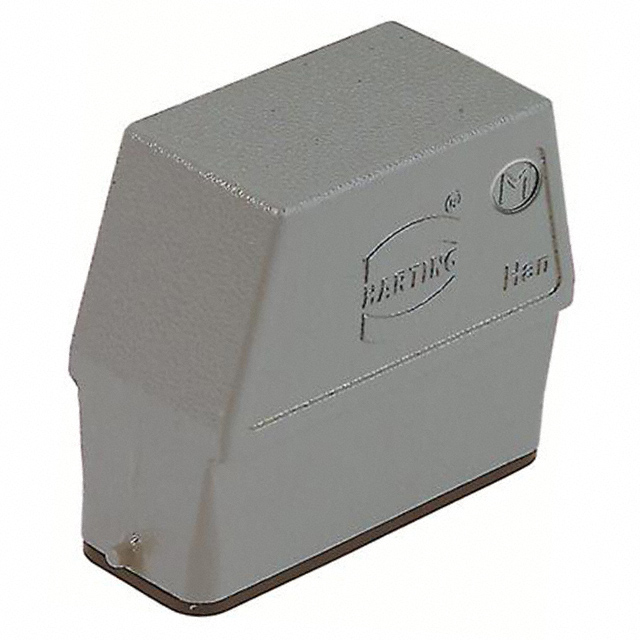

HEAVY DUTY CONNECTOR, M25, HOOD, SIDE ENTRY, ALUMINUM BODY, 1 LEVER, 16A
Deep-Dive with AI
Search across all available documentation for this part.
19200160546
ActiveHARTING Technology Group
HEAVY DUTY CONNECTOR, M25, HOOD, SIDE ENTRY, ALUMINUM BODY, 1 LEVER, 16A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 19200160546 |
|---|---|
| Connector Type | Hood |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
| Housing Material | Die Cast, Aluminum |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (1) on Base Bottom |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 16 A |
| Size / Dimension [x] | 79.2 mm, 3.118 in |
| Size / Dimension [y] | 1.417 in, 36 mm |
| Size / Dimension [z] | 2.764 in, 70.2 mm |
| Style | Side Entry |
| Thread Size | M25 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 35.86 | |
| 10 | $ 26.46 | |||
| 25 | $ 23.76 | |||
| 50 | $ 22.01 | |||
| 100 | $ 20.48 | |||
| 250 | $ 18.73 | |||
| 500 | $ 17.60 | |||
Description
General part information
19200160 Series
Hood Connector Side Entry M25 16A IP65 - Dust Tight, Water Resistant
