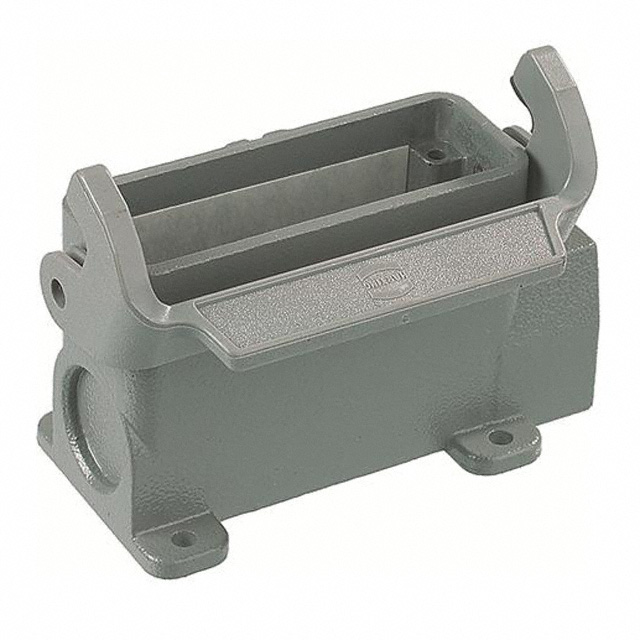

19200160251
ActiveHARTING Technology Group
CONN BASE SIDE ENTRY SZ16A M25
Deep-Dive with AI
Search across all available documentation for this part.
19200160251
ActiveHARTING Technology Group
CONN BASE SIDE ENTRY SZ16A M25
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 19200160251 |
|---|---|
| Connector Type | Base - Box Mount |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
| Housing Material | Die Cast, Aluminum |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (1) on Base Bottom |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 16 A |
| Size / Dimension [x] | 95 mm |
| Size / Dimension [x] | 3.74 " |
| Size / Dimension [y] | 1.969 in |
| Size / Dimension [y] | 50 mm |
| Size / Dimension [z] | 57 mm |
| Size / Dimension [z] | 2.244 " |
| Style | Side Entry |
| Thread Size | M25 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 51.75 | |
| 10 | $ 38.53 | |||
| 25 | $ 34.72 | |||
| 50 | $ 32.25 | |||
| 100 | $ 30.08 | |||
| 250 | $ 27.61 | |||
Description
General part information
19200160 Series
Base - Box Mount Connector Side Entry M25 16A IP65 - Dust Tight, Water Resistant
