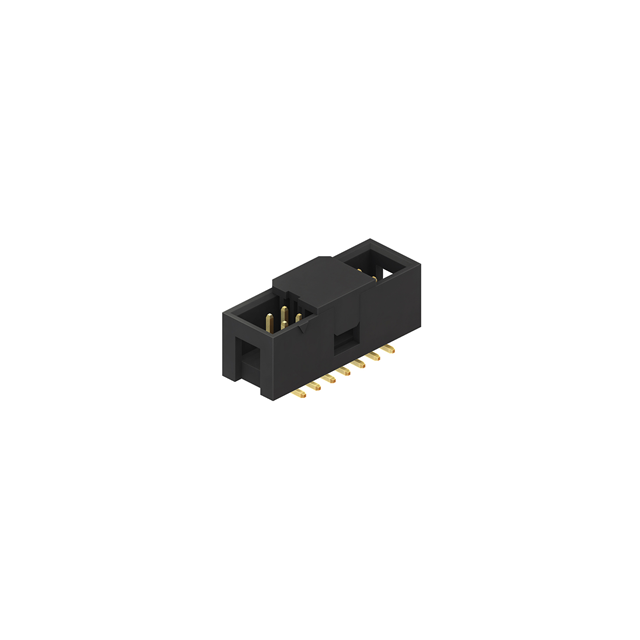

3020-14-0300-00-TR

Active

CnC Tech, LLC

CONN HEADER SMD 14POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSoldering Guide 3X10,3X20,3221 Series Datasheet

3020-14-0300-00-TR

Active

CnC Tech, LLC

CONN HEADER SMD 14POS 2.54MM

Deep-Dive with AI

DocumentsSoldering Guide 3X10,3X20,3221 Series Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3020-14-0300-00-TR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Pick and Place, Keying Slot
Insulation Color	Black
Insulation Height	9 mm
Insulation Height	0.354 in
Insulation Material	Polyamide (PA9T), Nylon 9T
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

3020-14 Series

Part	Connector Type	Number of Rows	Number of Positions Loaded	Shrouding	Fastening Type	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Shape	Material Flammability Rating	Contact Finish Thickness - Post	Mounting Type	Contact Type	Style	Contact Length - Post	Contact Length - Post	Features	Termination	Contact Finish - Mating	Contact Finish - Post	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Insulation Height [z]	Insulation Height [z]	Voltage Rating	Contact Material	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height [custom]	Insulation Height [custom]	Insulation Height	Insulation Height
CnC Tech, LLC 3020-14-0200-00	Header	2	All	Shrouded - 4 Wall	Push-Pull	0.1 in	2.54 mm	14	Square	UL94 V-0	Flash	Through Hole Right Angle	Male Pin	Board to Cable/Wire	0.118 in	3 mm	Keying Slot	Solder	Gold	Gold	Nylon 9T Polyamide (PA9T)	-40 °C	105 ░C	3 A	0.346 in	8.8 mm	250 VAC	Brass	Black	2.54 mm	0.1 in	Flash
CnC Tech, LLC 3020-14-0100-02	Header	2	All	Shrouded - 4 Wall	Push-Pull	0.1 in	2.54 mm	14	Square	UL94 V-0		Through Hole Right Angle	Male Pin	Board to Cable/Wire	0.118 in	3 mm		Solder	Gold		Nylon 6T Polyamide (PA6T)	-40 °C	105 ░C	3 A				Brass		2.54 mm	0.1 in		30 Áin	0.76 Ám	0.35 in	8.89 mm
CnC Tech, LLC 3020-14-0300-00	Header	2	All	Shrouded - 4 Wall	Push-Pull	0.1 in	2.54 mm	14	Square	UL94 V-0	Flash	Surface Mount	Male Pin	Board to Cable/Wire			Keying Slot	Solder	Gold	Gold	Nylon 9T Polyamide (PA9T)	-40 °C	105 ░C	3 A				Brass	Black	2.54 mm	0.1 in	Flash					9 mm	0.354 in
CnC Tech, LLC 3020-14-0300-00-TR	Header	2	All	Shrouded - 4 Wall	Push-Pull	0.1 in	2.54 mm	14	Square	UL94 V-0	Flash	Surface Mount	Male Pin	Board to Cable/Wire			Keying Slot Pick and Place	Solder	Gold	Gold	Nylon 9T Polyamide (PA9T)	-40 °C	105 ░C	3 A				Copper Alloy	Black	2.54 mm	0.1 in	Flash					9 mm	0.354 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.17
		10	$ 0.99
		100	$ 0.89
	Digi-Reel®	1	$ 1.17
		10	$ 0.99
		100	$ 0.89
	Tape & Reel (TR)	300	$ 0.78
		600	$ 0.73
		900	$ 0.70
		1500	$ 0.66
		2100	$ 0.64
		3000	$ 0.62
		7500	$ 0.56
		15000	$ 0.54
