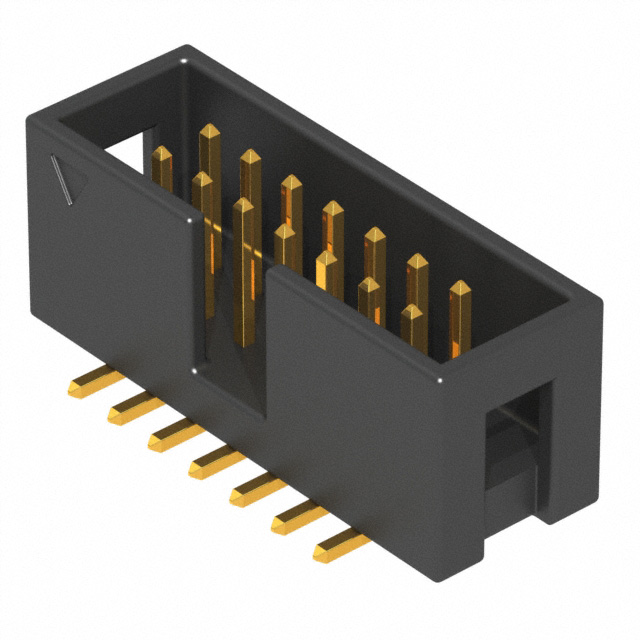

3020-14-0300-00

Active

CnC Tech, LLC

CONN HEADER SMD 14POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsIDC, Flat Ribbon Cable Mating Chart Datasheet +2

3020-14-0300-00

Active

CnC Tech, LLC

CONN HEADER SMD 14POS 2.54MM

Deep-Dive with AI

DocumentsIDC, Flat Ribbon Cable Mating Chart Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3020-14-0300-00

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	9 mm
Insulation Height	0.354 in
Insulation Material	Polyamide (PA9T), Nylon 9T
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

3020-14 Series

Part	Connector Type	Number of Rows	Number of Positions Loaded	Shrouding	Fastening Type	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Shape	Material Flammability Rating	Contact Finish Thickness - Post	Mounting Type	Contact Type	Style	Contact Length - Post	Contact Length - Post	Features	Termination	Contact Finish - Mating	Contact Finish - Post	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Insulation Height [z]	Insulation Height [z]	Voltage Rating	Contact Material	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height [custom]	Insulation Height [custom]	Insulation Height	Insulation Height
CnC Tech, LLC 3020-14-0200-00	Header	2	All	Shrouded - 4 Wall	Push-Pull	0.1 in	2.54 mm	14	Square	UL94 V-0	Flash	Through Hole Right Angle	Male Pin	Board to Cable/Wire	0.118 in	3 mm	Keying Slot	Solder	Gold	Gold	Nylon 9T Polyamide (PA9T)	-40 °C	105 ░C	3 A	0.346 in	8.8 mm	250 VAC	Brass	Black	2.54 mm	0.1 in	Flash
CnC Tech, LLC 3020-14-0100-02	Header	2	All	Shrouded - 4 Wall	Push-Pull	0.1 in	2.54 mm	14	Square	UL94 V-0		Through Hole Right Angle	Male Pin	Board to Cable/Wire	0.118 in	3 mm		Solder	Gold		Nylon 6T Polyamide (PA6T)	-40 °C	105 ░C	3 A				Brass		2.54 mm	0.1 in		30 Áin	0.76 Ám	0.35 in	8.89 mm
CnC Tech, LLC 3020-14-0300-00	Header	2	All	Shrouded - 4 Wall	Push-Pull	0.1 in	2.54 mm	14	Square	UL94 V-0	Flash	Surface Mount	Male Pin	Board to Cable/Wire			Keying Slot	Solder	Gold	Gold	Nylon 9T Polyamide (PA9T)	-40 °C	105 ░C	3 A				Brass	Black	2.54 mm	0.1 in	Flash					9 mm	0.354 in
CnC Tech, LLC 3020-14-0300-00-TR	Header	2	All	Shrouded - 4 Wall	Push-Pull	0.1 in	2.54 mm	14	Square	UL94 V-0	Flash	Surface Mount	Male Pin	Board to Cable/Wire			Keying Slot Pick and Place	Solder	Gold	Gold	Nylon 9T Polyamide (PA9T)	-40 °C	105 ░C	3 A				Copper Alloy	Black	2.54 mm	0.1 in	Flash					9 mm	0.354 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.03
		10	$ 0.78
		80	$ 0.62
		440	$ 0.51
		1200	$ 0.46
		6000	$ 0.39
		10800	$ 0.37

Description

General part information

3020-14 Series

Connector Header Surface Mount 14 position 0.100" (2.54mm)

Documents

Technical documentation and resources

IDC, Flat Ribbon Cable Mating Chart

Datasheet

Soldering Guide 3X10,3X20,3221 Series

IDC Header Mating Guide

Datasheet
