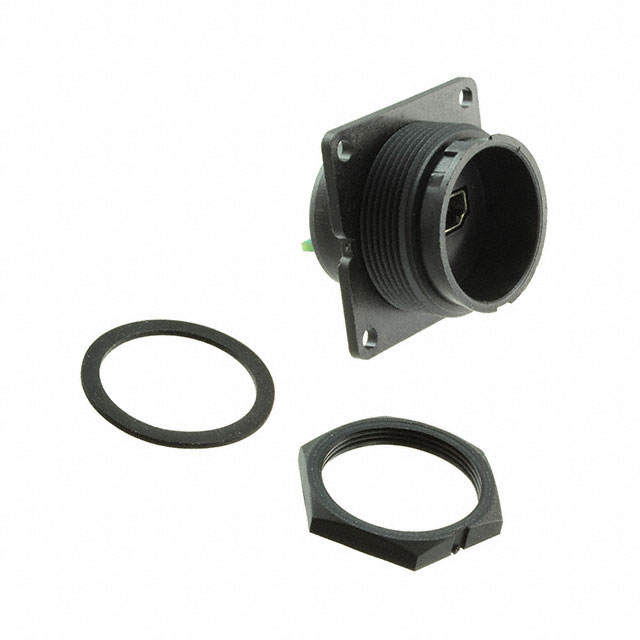

DCP-HDMIB-SC

Obsolete

Conxall/Switchcraft

CONN RCPT HDMI 19POS PNL MNT

Search across all available documentation for this part.

Obsolete

Conxall/Switchcraft

CONN RCPT HDMI 19POS PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	DCP-HDMIB-SC

Connector Type	HDMI
Contact Finish	Gold
Current Rating (Amps)	0.5 A
Features	Circular Bayonet Coupling
Gender	Receptacle
Ingress Protection	IP67/IP68 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mating Cycles	350
Mounting Feature	Flange
Number of Contacts [custom]	19
Number of Ports	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Shell/Shielding Material	Copper Alloy
Shielding	Unshielded
Termination	PC Board

Part	Convert To (Adapter End)	Convert From (Adapter End)	Ingress Protection	Contact Finish	Shielding	Number of Ports	Material Flammability Rating	Mating Cycles	Current Rating (Amps)	Shell/Shielding Material	Operating Temperature [Min]	Operating Temperature [Max]	Features	Number of Contacts [custom]	Termination	Connector Type	Gender	Mounting Feature
Conxall/Switchcraft DCP-HDMIB-HD	Rectangular Header	HDMI Receptacle
Conxall/Switchcraft DCP-HDMIB-SC			IP67/IP68 - Dust Tight Waterproof	Gold	Unshielded	1	UL94 V-0	350	0.5 A	Copper Alloy	-20 C	80 C	Circular Bayonet Coupling	19	PC Board	HDMI	Receptacle	Flange

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

HDMI Receptacle Connector 19 Position Panel Mount

Technical documentation and resources

No documents available
