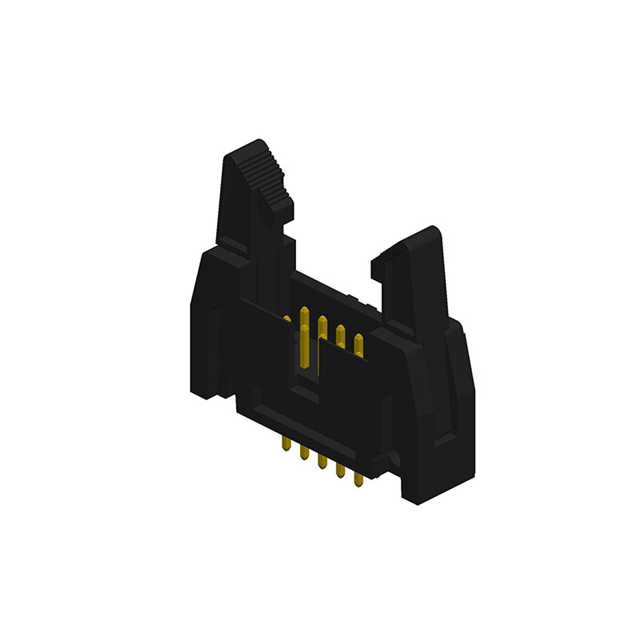

3010-10-001-13-00

Active

CnC Tech, LLC

CONN HEADER VERT 10POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Soldering Guide 3X10,3X20,3221 Series +2

3010-10-001-13-00

Active

CnC Tech, LLC

CONN HEADER VERT 10POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet Soldering Guide 3X10,3X20,3221 Series +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3010-10-001-13-00

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Lock/Eject Hooks, Long
Features	Keying Slot
Insulation Height [z]	17 mm
Insulation Height [z]	0.669 "
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

3010-10 Series

Part	Mounting Type	Number of Positions Loaded	Fastening Type	Style	Insulation Height	Insulation Height	Connector Type	Shrouding	Features	Pitch - Mating	Pitch - Mating	Number of Rows	Contact Material	Voltage Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Current Rating (Amps)	Contact Shape	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Type	Termination	Insulation Material	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness	Contact Finish	Cable Termination	Row Spacing [x]	Row Spacing	Pitch [x]	Pitch [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
CnC Tech, LLC 3010-10-002-13-00	Through Hole Right Angle	All	Latch Lock/Eject Hooks Long	Board to Cable/Wire	0.327 "	8.3 mm	Header	Shrouded - 4 Wall	Keying Slot	0.1 in	2.54 mm	2	Brass	250 VAC	2.54 mm	0.1 in	3 A	Square	0.134 in	3.4 mm	10	Gold	-40 °C	105 ░C	UL94 V-0	Flash	Male Pin	Solder	Polybutylene Terephthalate (PBT)
CnC Tech, LLC 3010-10-003-12-00	Surface Mount	All	Latch Lock/Eject Hooks Short	Board to Cable/Wire			Header	Shrouded - 4 Wall	Keying Slot	0.1 in	2.54 mm	2	Brass	250 VAC	2.54 mm	0.1 in	3 A	Square			10	Gold	-40 °C	105 ░C	UL94 V-0	Flash	Male Pin	Solder	Nylon 9T Polyamide (PA9T)	17 mm	0.669 "
CnC Tech, LLC 3010-10-002-11-00	Through Hole Right Angle	All	Push-Pull	Board to Cable/Wire	0.323 in	8.2 mm	Header	Shrouded - 4 Wall	Keying Slot	0.1 in	2.54 mm	2	Brass		2.54 mm	0.1 in		Square	0.134 in	3.4 mm	10	Gold	-40 °C	105 ░C	UL94 V-0	Flash	Male Pin	Solder	Polybutylene Terephthalate (PBT)
CnC Tech, LLC 3010-10-001-11-00	Through Hole	All	Push-Pull	Board to Cable/Wire			Header	Shrouded - 4 Wall	Keying Slot	0.1 in	2.54 mm	2	Brass		2.54 mm	0.1 in		Square	0.134 in	3.4 mm	10	Gold	-40 °C	105 ░C	UL94 V-0	Flash	Male Pin	Solder	Polybutylene Terephthalate (PBT)	17 mm	0.669 "
CnC Tech, LLC 3010-10-001-13-00	Through Hole	All	Latch Lock/Eject Hooks Long	Board to Cable/Wire			Header	Shrouded - 4 Wall	Keying Slot	0.1 in	2.54 mm	2	Brass	250 VAC	2.54 mm	0.1 in	3 A	Square	0.134 in	3.4 mm	10	Gold	-40 °C	105 ░C	UL94 V-0	Flash	Male Pin	Solder	Polybutylene Terephthalate (PBT)	17 mm	0.669 "
CnC Tech, LLC 3010-10-003-13-00	Surface Mount	All	Latch Lock/Eject Hooks Long	Board to Cable/Wire			Header	Shrouded - 4 Wall	Keying Slot	0.1 in	2.54 mm	2	Brass	250 VAC	2.54 mm	0.1 in	3 A	Square			10	Gold	-40 °C	105 ░C	UL94 V-0	Flash	Male Pin	Solder	Nylon 9T Polyamide (PA9T)	17 mm	0.669 "
CnC Tech, LLC 3010-10-002-12-00	Through Hole Right Angle	All	Latch Lock/Eject Hooks Short	Board to Cable/Wire	0.327 "	8.3 mm	Header	Shrouded - 4 Wall	Keying Slot	0.1 in	2.54 mm	2	Brass	250 VAC	2.54 mm	0.1 in	3 A	Square	0.134 in	3.4 mm	10	Gold	-40 °C	105 ░C	UL94 V-0	Flash	Male Pin	Solder	Polybutylene Terephthalate (PBT)
CnC Tech, LLC 3010-10-041-11-00	Free Hanging (In-Line)		Push-Pull				Header		Polarizing Key			2									10						Male Pin					Flash	Gold	IDC	0.1 in	2.54 mm	2.54 mm	0.1 in
CnC Tech, LLC 3010-10-002-12-99	Through Hole Right Angle	All	Latch Lock/Eject Hooks Short	Board to Cable/Wire	0.327 "	8.3 mm	Header	Shrouded - 4 Wall	Keying Slot	0.1 in	2.54 mm	2	Brass		2.54 mm	0.1 in		Square	0.134 in	3.4 mm	10		-40 °C	105 ░C	UL94 V-0		Male Pin	Solder	Polybutylene Terephthalate (PBT)										2.03 µm	80 µin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.14
		10	$ 0.96
		80	$ 0.87
		936	$ 0.69
		1872	$ 0.59
		5616	$ 0.55
		10296	$ 0.52

Description

General part information

3010-10 Series

Connector Header Through Hole 10 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Soldering Guide 3X10,3X20,3221 Series

IDC Header Mating Guide

Datasheet

IDC, Flat Ribbon Cable Mating Chart

Datasheet
