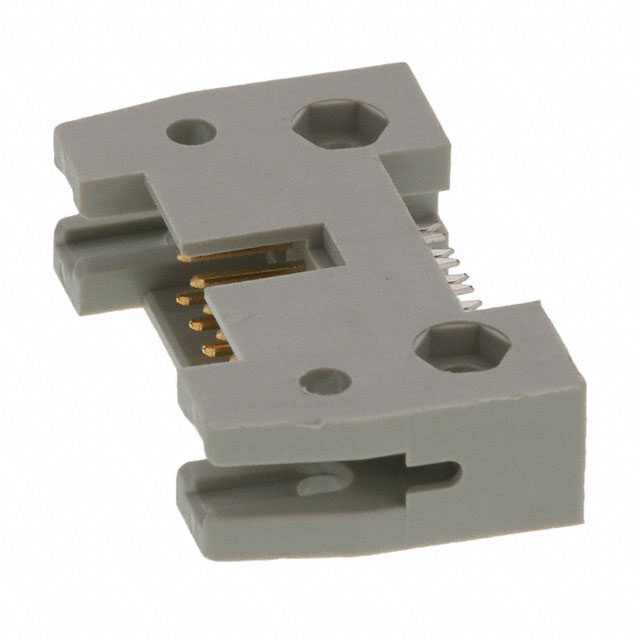

3010-10-041-11-00

Active

CnC Tech, LLC

CONN HEADER 10POS IDC GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3010-10-041-11-00

Cable Termination	IDC
Connector Type	Header
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Polarizing Key
Mounting Type	Free Hanging (In-Line)
Number of Positions	10
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in

3010-10 Series

Part	Mounting Type	Number of Positions Loaded	Fastening Type	Style	Insulation Height	Insulation Height	Connector Type	Shrouding	Features	Pitch - Mating	Pitch - Mating	Number of Rows	Contact Material	Voltage Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Current Rating (Amps)	Contact Shape	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Type	Termination	Insulation Material	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness	Contact Finish	Cable Termination	Row Spacing [x]	Row Spacing	Pitch [x]	Pitch [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
CnC Tech, LLC 3010-10-002-13-00	Through Hole Right Angle	All	Latch Lock/Eject Hooks Long	Board to Cable/Wire	0.327 "	8.3 mm	Header	Shrouded - 4 Wall	Keying Slot	0.1 in	2.54 mm	2	Brass	250 VAC	2.54 mm	0.1 in	3 A	Square	0.134 in	3.4 mm	10	Gold	-40 °C	105 ░C	UL94 V-0	Flash	Male Pin	Solder	Polybutylene Terephthalate (PBT)
CnC Tech, LLC 3010-10-003-12-00	Surface Mount	All	Latch Lock/Eject Hooks Short	Board to Cable/Wire			Header	Shrouded - 4 Wall	Keying Slot	0.1 in	2.54 mm	2	Brass	250 VAC	2.54 mm	0.1 in	3 A	Square			10	Gold	-40 °C	105 ░C	UL94 V-0	Flash	Male Pin	Solder	Nylon 9T Polyamide (PA9T)	17 mm	0.669 "
CnC Tech, LLC 3010-10-002-11-00	Through Hole Right Angle	All	Push-Pull	Board to Cable/Wire	0.323 in	8.2 mm	Header	Shrouded - 4 Wall	Keying Slot	0.1 in	2.54 mm	2	Brass		2.54 mm	0.1 in		Square	0.134 in	3.4 mm	10	Gold	-40 °C	105 ░C	UL94 V-0	Flash	Male Pin	Solder	Polybutylene Terephthalate (PBT)
CnC Tech, LLC 3010-10-001-11-00	Through Hole	All	Push-Pull	Board to Cable/Wire			Header	Shrouded - 4 Wall	Keying Slot	0.1 in	2.54 mm	2	Brass		2.54 mm	0.1 in		Square	0.134 in	3.4 mm	10	Gold	-40 °C	105 ░C	UL94 V-0	Flash	Male Pin	Solder	Polybutylene Terephthalate (PBT)	17 mm	0.669 "
CnC Tech, LLC 3010-10-001-13-00	Through Hole	All	Latch Lock/Eject Hooks Long	Board to Cable/Wire			Header	Shrouded - 4 Wall	Keying Slot	0.1 in	2.54 mm	2	Brass	250 VAC	2.54 mm	0.1 in	3 A	Square	0.134 in	3.4 mm	10	Gold	-40 °C	105 ░C	UL94 V-0	Flash	Male Pin	Solder	Polybutylene Terephthalate (PBT)	17 mm	0.669 "
CnC Tech, LLC 3010-10-003-13-00	Surface Mount	All	Latch Lock/Eject Hooks Long	Board to Cable/Wire			Header	Shrouded - 4 Wall	Keying Slot	0.1 in	2.54 mm	2	Brass	250 VAC	2.54 mm	0.1 in	3 A	Square			10	Gold	-40 °C	105 ░C	UL94 V-0	Flash	Male Pin	Solder	Nylon 9T Polyamide (PA9T)	17 mm	0.669 "
CnC Tech, LLC 3010-10-002-12-00	Through Hole Right Angle	All	Latch Lock/Eject Hooks Short	Board to Cable/Wire	0.327 "	8.3 mm	Header	Shrouded - 4 Wall	Keying Slot	0.1 in	2.54 mm	2	Brass	250 VAC	2.54 mm	0.1 in	3 A	Square	0.134 in	3.4 mm	10	Gold	-40 °C	105 ░C	UL94 V-0	Flash	Male Pin	Solder	Polybutylene Terephthalate (PBT)
CnC Tech, LLC 3010-10-041-11-00	Free Hanging (In-Line)		Push-Pull				Header		Polarizing Key			2									10						Male Pin					Flash	Gold	IDC	0.1 in	2.54 mm	2.54 mm	0.1 in
CnC Tech, LLC 3010-10-002-12-99	Through Hole Right Angle	All	Latch Lock/Eject Hooks Short	Board to Cable/Wire	0.327 "	8.3 mm	Header	Shrouded - 4 Wall	Keying Slot	0.1 in	2.54 mm	2	Brass		2.54 mm	0.1 in		Square	0.134 in	3.4 mm	10		-40 °C	105 ░C	UL94 V-0		Male Pin	Solder	Polybutylene Terephthalate (PBT)										2.03 µm	80 µin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.28
		10	$ 1.12
		80	$ 1.00
		440	$ 0.84

Description

General part information

3010-10 Series

10 Position Rectangular Header Connector IDC Gold

Documents

Technical documentation and resources
