XIO2001IZAJ
ActivePCI EXPRESS® (PCIE®) TO PCI BUS TRANSLATION BRIDGE
Deep-Dive with AI
Search across all available documentation for this part.
XIO2001IZAJ
ActivePCI EXPRESS® (PCIE®) TO PCI BUS TRANSLATION BRIDGE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XIO2001IZAJ |
|---|---|
| Applications | PCI Express to PCI Translation Bridge |
| Interface | PCI Express |
| Mounting Type | Surface Mount |

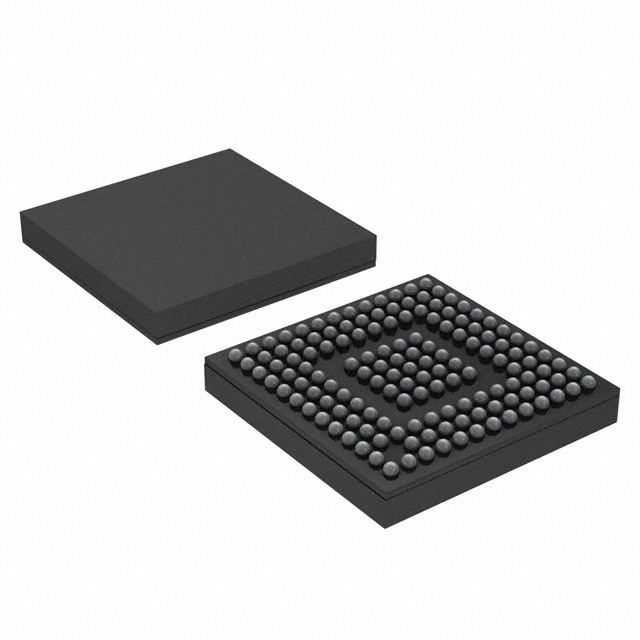

| Package / Case | 144-TFBGA |
| Supplier Device Package | 144-NFBGA (7x7) |
| Voltage - Supply [Max] | 3.6 V, 1.65 V |
| Voltage - Supply [Min] | 1.35 V, 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 6.98 | |
| 10 | $ 6.31 | |||
| 25 | $ 6.01 | |||
| 80 | $ 5.22 | |||
| 260 | $ 4.99 | |||
| 520 | $ 4.55 | |||
| 1040 | $ 3.96 | |||
| 2600 | $ 3.81 | |||
| Texas Instruments | JEDEC TRAY (5+1) | 1 | $ 5.34 | |
| 100 | $ 4.36 | |||
| 250 | $ 3.42 | |||
| 1000 | $ 2.90 | |||
Description
General part information
XIO2001 Series
The XIO2001 is a single-function PCI Express to PCI translation bridge that is fully compliant to thePCI Express to PCI/PCI-X Bridge Specification, Revision 1.0. For downstream traffic, the bridge simultaneously supports up to eight posted and four non-posted transactions. For upstream traffic, up to six posted and four non-posted transactions are simultaneously supported.
The PCI Express interface is fully compliant to thePCI Express Base Specification, Revision 2.0.
The PCI Express interface supports a ×1 link operating at full 250 MB/s packet throughput in each direction simultaneously. Also, the bridge supports the advanced error reporting including extended CRC (ECRC) as defined in thePCI Express Base Specification. Supplemental firmware or software is required to fully use both of these features.
