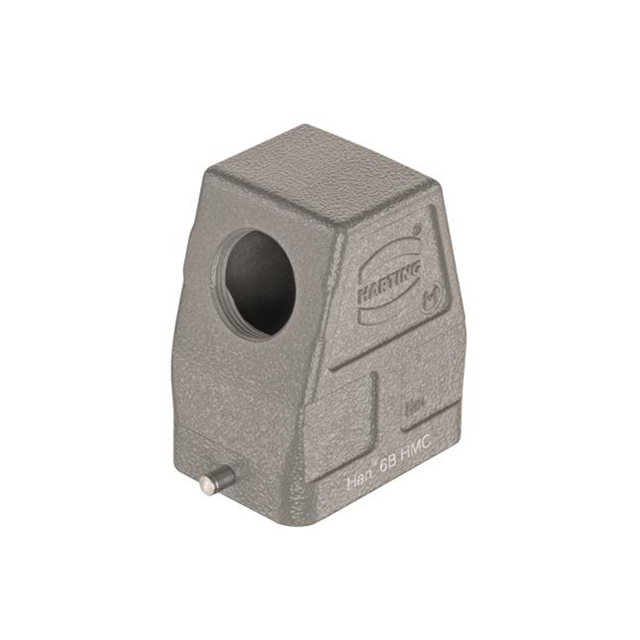

6B HOOD SIDE ENTRY, SINGLE LEVER, HIGH CONSTRUCTION, M25 - HIGH MATING CYCLE VERSION

Search across all available documentation for this part.

Active

HARTING Technology Group

6B HOOD SIDE ENTRY, SINGLE LEVER, HIGH CONSTRUCTION, M25 - HIGH MATING CYCLE VERSION

Technical Specifications

Parameters and characteristics for this part

Specification	19302060546

Connector Type	Hood
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	6B
Size / Dimension [x]	59.5 mm
Size / Dimension [x]	2.343 in
Size / Dimension [y]	43 mm
Size / Dimension [y]	1.693 in
Size / Dimension [z]	2.835 in
Size / Dimension [z]	72 mm
Style	Side Entry
Thread Size	M25

Part	Thread Size	Style	Housing Color	Features	Size	Lock Location	Connector Type	Housing Finish	Housing Material	Ingress Protection	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [y]
HARTING Technology Group 19302060291	M25	Side Entry Dual	Gray	Feed Through	6B	Locking Clip (1) on Base Bottom	Base - Box Mount	Powder Coated	Aluminum Die Cast	IP65 - Dust Tight Water Resistant	3.228 in	2.906 "	2.244 "	73.8 mm	57 mm	82 mm	125 °C	-40 °C
HARTING Technology Group 19302060757	M32	Top Entry	Gray	Cable to Cable	6B	Locking Clip (1) on Hood	Hood - Coupling	Powder Coated	Aluminum Die Cast	IP65 - Dust Tight Water Resistant	2.362 in	2.913 in	1.693 in			60 mm	125 °C	-40 °C	74 mm	43 mm
HARTING Technology Group 19302060546	M25	Side Entry	Gray		6B	Locking Clip (1) on Base Bottom	Hood	Powder Coated	Aluminum Die Cast	IP65 - Dust Tight Water Resistant	2.343 in	2.835 in	1.693 in			59.5 mm	125 °C	-40 °C	72 mm	43 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Side Entry M25 6B IP65 - Dust Tight, Water Resistant
