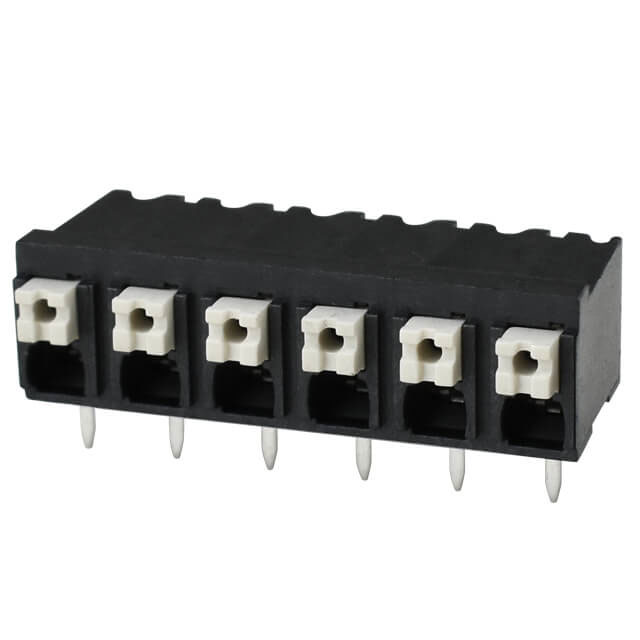

TBLH10-500-06BK

Active

CUI Devices

TERMINAL BLOCK, SCREWLESS, HIGH

Search across all available documentation for this part.

Active

CUI Devices

TERMINAL BLOCK, SCREWLESS, HIGH

Technical Specifications

Parameters and characteristics for this part

Part	Contact Material - Plating	Housing Material	Number of Levels	Wire Gauge [Min]	Wire Gauge [Max]	Wire Termination	Positions Per Level	Mating Orientation	Mounting Type	Pitch [x]	Pitch [x]	Color	Current	Voltage	Features	Operating Temperature [Min]	Operating Temperature [Max]
CUI Devices TBLH10-500-11BK	Copper Alloy - Tin Plated	Liquid Crystal Polymer (LCP)	1	16 AWG	24 AWG	Screwless - Push Button Clamp	11	Horizontal with Board	Through Hole	5 mm	0.197 in	Black	10 A	300 V	Push Button Actuated	-40 °C	130 °C
CUI Devices TBLH10-500-03BK	Copper Alloy - Tin Plated	Liquid Crystal Polymer (LCP)	1	16 AWG	24 AWG	Screwless - Push Button Clamp	3	Horizontal with Board	Through Hole	5 mm	0.197 in	Black	10 A	300 V	Push Button Actuated	-40 °C	130 °C
CUI Devices TBLH10-500-06BK	Copper Alloy - Tin Plated	Liquid Crystal Polymer (LCP)	1	16 AWG	24 AWG	Screwless - Push Button Clamp	6	Horizontal with Board	Through Hole	5 mm	0.197 in	Black	10 A	300 V	Push Button Actuated	-40 °C	130 °C
CUI Devices TBLH10-350-13BK	Copper Alloy - Tin Plated	Liquid Crystal Polymer (LCP)	1	16 AWG	24 AWG	Screwless - Push Button Clamp	13	Horizontal with Board	Through Hole	3.5 mm	0.138 in	Black	10 A	300 V	Push Button Actuated	-40 °C	130 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole
