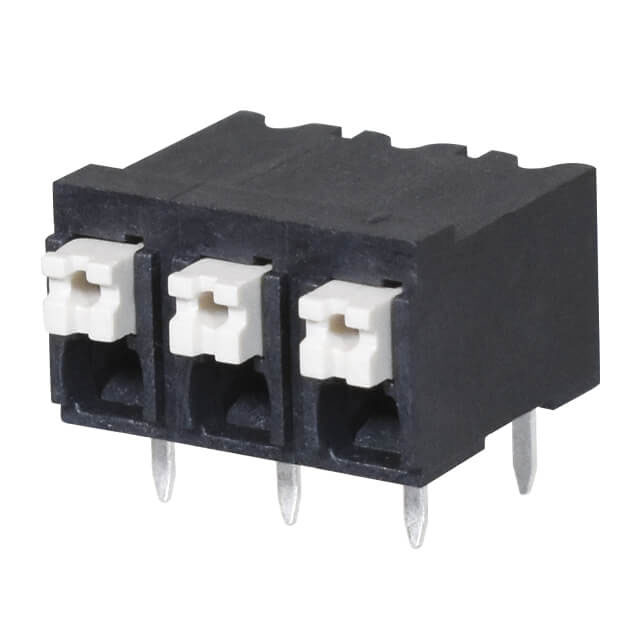

TBLH10-500-03BK

Active

CUI Devices

2~24 POLES, SCREWLESS, HORIZONTAL, 5.00 PITCH, 24~16 (AWG), TERMINAL BLOCK CONNECTOR

Search across all available documentation for this part.

Active

CUI Devices

2~24 POLES, SCREWLESS, HORIZONTAL, 5.00 PITCH, 24~16 (AWG), TERMINAL BLOCK CONNECTOR

Technical Specifications

Parameters and characteristics for this part

Part	Contact Material - Plating	Housing Material	Number of Levels	Wire Gauge [Min]	Wire Gauge [Max]	Wire Termination	Positions Per Level	Mating Orientation	Mounting Type	Pitch [x]	Pitch [x]	Color	Current	Voltage	Features	Operating Temperature [Min]	Operating Temperature [Max]
CUI Devices TBLH10-500-11BK	Copper Alloy - Tin Plated	Liquid Crystal Polymer (LCP)	1	16 AWG	24 AWG	Screwless - Push Button Clamp	11	Horizontal with Board	Through Hole	5 mm	0.197 in	Black	10 A	300 V	Push Button Actuated	-40 °C	130 °C
CUI Devices TBLH10-500-03BK	Copper Alloy - Tin Plated	Liquid Crystal Polymer (LCP)	1	16 AWG	24 AWG	Screwless - Push Button Clamp	3	Horizontal with Board	Through Hole	5 mm	0.197 in	Black	10 A	300 V	Push Button Actuated	-40 °C	130 °C
CUI Devices TBLH10-500-06BK	Copper Alloy - Tin Plated	Liquid Crystal Polymer (LCP)	1	16 AWG	24 AWG	Screwless - Push Button Clamp	6	Horizontal with Board	Through Hole	5 mm	0.197 in	Black	10 A	300 V	Push Button Actuated	-40 °C	130 °C
CUI Devices TBLH10-350-13BK	Copper Alloy - Tin Plated	Liquid Crystal Polymer (LCP)	1	16 AWG	24 AWG	Screwless - Push Button Clamp	13	Horizontal with Board	Through Hole	3.5 mm	0.138 in	Black	10 A	300 V	Push Button Actuated	-40 °C	130 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole
