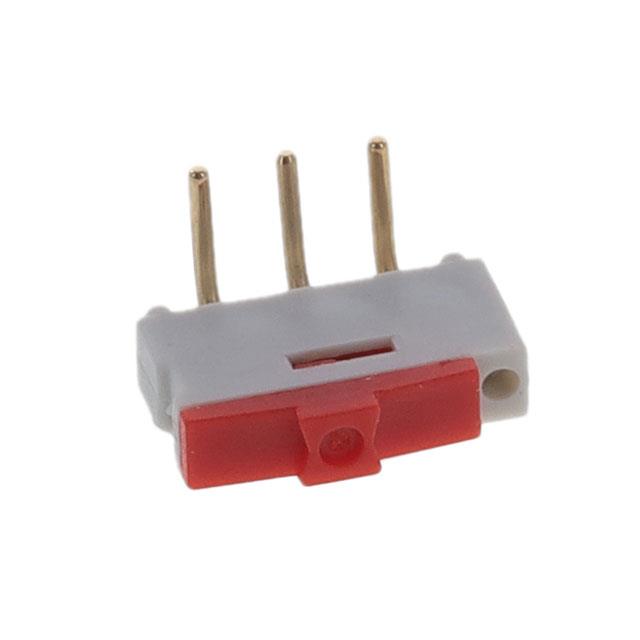

09.10201.02 - 09.10201.02

09.10201.02

Active
EAO

SLIDE SWITCHES 1K2 ACT GOLD RIGHT ANGL MNT RED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
09.10201.02 - 09.10201.02

09.10201.02

Active
EAO

SLIDE SWITCHES 1K2 ACT GOLD RIGHT ANGL MNT RED

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

Specification09.10201.02
Actuator Length [x]1.4 mm
Actuator TypeFlush
CircuitSPDT
Contact FinishGold
Contact MaterialNickel
Current Rating (Amps)500 mA
Electrical Life1000 Cycles
Mechanical Life10000 Steps
Mounting TypeThrough Hole, Right Angle
Operating Temperature [Max]85 °C
Operating Temperature [Min]-40 °C
Switch FunctionOn-On
Termination StylePC Pin
Voltage Rating - DC24 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 2.65
10$ 2.38
25$ 2.25
50$ 2.15
100$ 2.04
300$ 1.95
500$ 1.81
1000$ 1.72
SagerN/A 1$ 1.76
25$ 1.62
50$ 1.56
100$ 1.53
250$ 1.49
500$ 1.43
1000$ 1.38

Description

General part information

09.10201 Series

Rotary Switches Rotary Switch,Standard 30°, 3 deck, 1 pole/deck, 7 positions/pole, non-shorting
