09-0S12.0251

Active

EAO

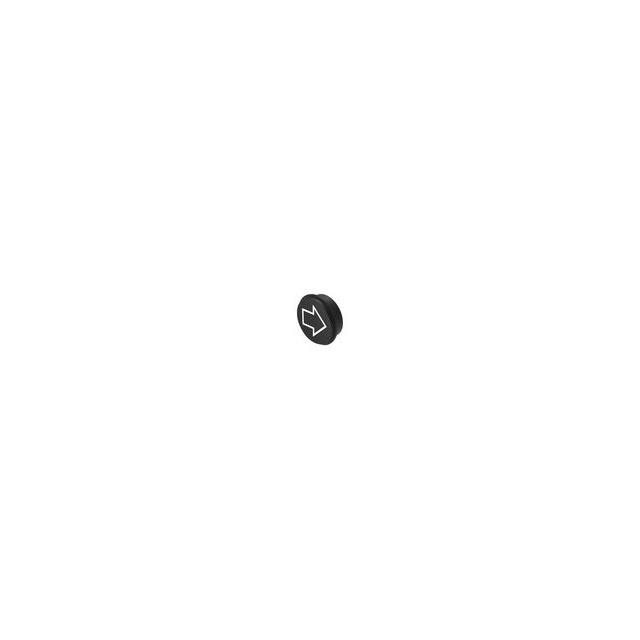

BUTTON; ROUND; Ø21MM; BLACK; 09; BUTTON MARKING: ARROW

Search across all available documentation for this part.

Active

EAO

BUTTON; ROUND; Ø21MM; BLACK; 09; BUTTON MARKING: ARROW

Technical Specifications

Parameters and characteristics for this part

Specification	09-0S12.0251

Color	White LED, Black
For Use With/Related Products	09 Series
Illumination	Illuminated
Mounting Type	Snap Fit
Shape	Round
Switch Type	Keypad

Rotary Switches Rotary Switch,Standard 30°, 3 deck, 1 pole/deck, 7 positions/pole, non-shorting

Part	Illumination	Switch Type	Mounting Type	Color	Shape	For Use With/Related Products	Mechanical Life	Switch Function	Contact Finish	Current Rating (Amps)	Actuator Length [x]	Actuator Type	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Voltage Rating - DC	Circuit	Electrical Life
EAO 09-0S12.0251	Illuminated	Keypad	Snap Fit	Black White LED	Round	09 Series
EAO 09.10201.02			Through Hole Right Angle				10000 Steps	On-On	Gold	500 mA	1.4 mm	Flush	Nickel	85 °C	-40 °C	PC Pin	24 V	SPDT	1000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rotary Switches Rotary Switch,Standard 30°, 3 deck, 1 pole/deck, 7 positions/pole, non-shorting

Technical documentation and resources

No documents available
