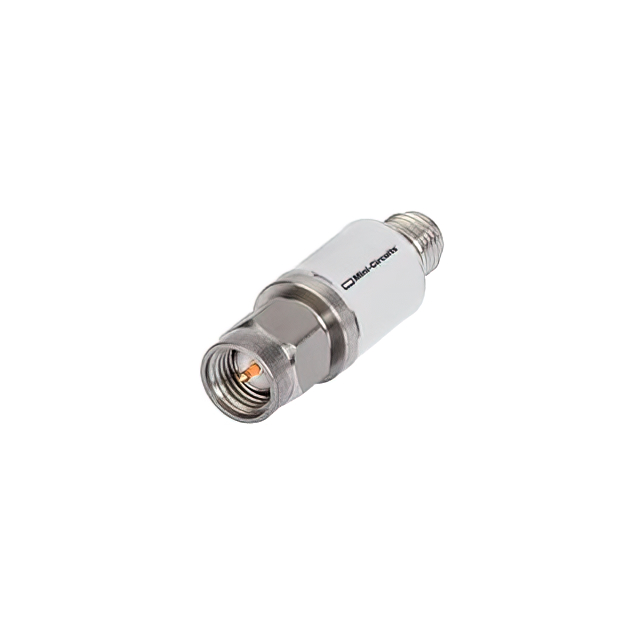

BLK-18-S+

Active

MINI-CIRCUITS

RF CONNECTOR ACCESSORIES SMA DC BLOCK 0.01 - 18 GHZ,50 OHMS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BLK-18-S+

Active

MINI-CIRCUITS

RF CONNECTOR ACCESSORIES SMA DC BLOCK 0.01 - 18 GHZ,50 OHMS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BLK-18-S+

Adapter Series	SMA to SMA
Adapter Type	Plug to Jack
Body Material	Stainless Steel
Conversion Type	Same Series
Convert From (Adapter End)	SMA Plug, Male Pin
Convert To (Adapter End)	SMA Jack, Female Socket
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-55 °C
Style	Straight

- Series

Part	Body Material	Conversion Type	Mounting Type	Frequency - Max [Max]	Adapter Series	Convert From (Adapter End)	Style	Impedance	Adapter Type	Convert To (Adapter End)	Operating Temperature [Max]	Operating Temperature [Min]	Center Gender	Adapter Series [Max]	Adapter Series [Min]	Mounting Feature	Convert From (Adapter End)	Convert To (Adapter End)	Power (Watts)	Attenuation Value [custom]	Package / Case	Frequency Range [Max]	Frequency Range [Min]	Insertion Loss	Connector Style	Connector Type
MINI-CIRCUITS BLK-18-S+	Stainless Steel	Same Series	Free Hanging (In-Line)	18 GHz	SMA to SMA	SMA Plug Male Pin	Straight	50 Ohms	Plug to Jack	Female Socket SMA Jack	100 °C	-55 °C
MINI-CIRCUITS NM-SF50+	Stainless Steel	Between Series	Free Hanging (In-Line)	18 GHz		N Plug Male Pin	Straight	50 Ohms	Plug to Jack	Female Socket SMA Jack	100 °C	-55 °C
MINI-CIRCUITS SF-35M50+	Stainless Steel	Between Series	Free Hanging (In-Line)	26.5 GHz	SMA to 3.5mm	3.5mm Plug Male Pin	Straight	50 Ohms	Plug to Jack	Female Socket SMA Jack	85 °C	-55 °C
MINI-CIRCUITS 24B-KB+	Stainless Steel	Between Series		40 GHz			Straight	50 Ohms	Jack to Jack	OS-2.9 Jack Female Socket	100 °C	-55 °C	Female to Female	2.92 mm	2.4 mm	Bulkhead	2.4 mm	2.92 mm
MINI-CIRCUITS GAT-6+								50 Ohms											0.5 W	6 dB	4-SMD No Lead	8 GHz	0 Hz
MINI-CIRCUITS KM-KM50+	Stainless Steel	Same Series	Free Hanging (In-Line)	40 GHz			Straight	50 Ohms	Plug to Plug	2.92mm (OS-2.9) Plug Male Pin	100 °C	-55 °C	Male to Male	2.92 mm	2.92 mm		2.92 mm							0.13 dB
MINI-CIRCUITS GAT-15+								50 Ohms											0.5 W	15 dB	4-SMD No Lead	8 GHz	0 Hz
MINI-CIRCUITS 24F-24F+	Stainless Steel	Same Series	Free Hanging (In-Line)	50 GHz			Straight	50 Ohms	Jack to Jack		100 °C	-55 °C	Female to Female	2.4 mm	2.4 mm		2.4 mm	2.4 mm						0.14 dB
MINI-CIRCUITS NM-SM50+	Stainless Steel	Between Series	Free Hanging (In-Line)	18 GHz		SMA Plug Male Pin	Straight	50 Ohms	Plug to Plug	Male Pin N Plug	100 °C	-55 °C	Male to Male
MINI-CIRCUITS ANNE-50L+			Cap Free Hanging	12 GHz				50 Ohms																	SMA	Male Pin Plug

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 33.31
		10	$ 30.28
		25	$ 29.92
		50	$ 29.65

Description

General part information

- Series

Adapter Coaxial Connector SMA Plug, Male Pin To SMA Jack, Female Socket 50 Ohms
