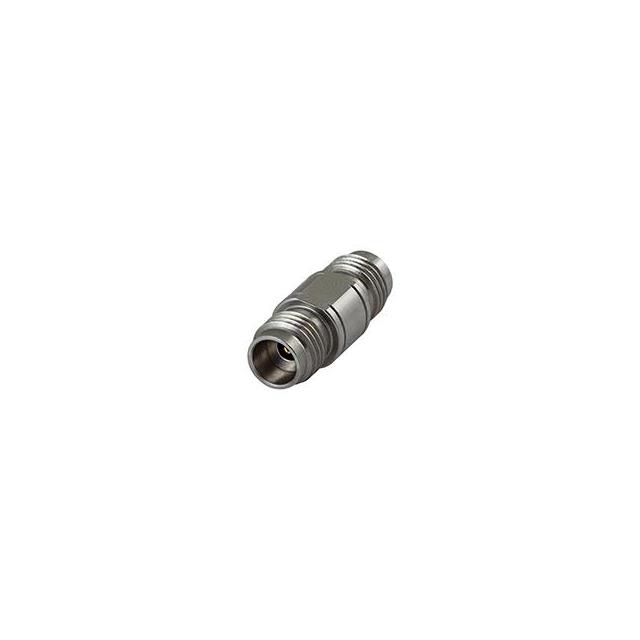

RF ADAPTER STRAIGHT 2.4MM FEMALE TO 2.4MM FEMALE DC - 50GHZ 50OHM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

24F-24F+

Active

MINI-CIRCUITS

RF ADAPTER STRAIGHT 2.4MM FEMALE TO 2.4MM FEMALE DC - 50GHZ 50OHM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	24F-24F+

Adapter Series [Max]	2.4 mm
Adapter Series [Min]	2.4 mm
Adapter Type	Jack to Jack
Body Material	Stainless Steel
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	2.4 mm
Convert To (Adapter End)	2.4 mm
Frequency - Max [Max]	50 GHz
Impedance	50 Ohms
Insertion Loss	0.14 dB
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-55 °C
Style	Straight

- Series

Part	Body Material	Conversion Type	Mounting Type	Frequency - Max [Max]	Adapter Series	Convert From (Adapter End)	Style	Impedance	Adapter Type	Convert To (Adapter End)	Operating Temperature [Max]	Operating Temperature [Min]	Center Gender	Adapter Series [Max]	Adapter Series [Min]	Mounting Feature	Convert From (Adapter End)	Convert To (Adapter End)	Power (Watts)	Attenuation Value [custom]	Package / Case	Frequency Range [Max]	Frequency Range [Min]	Insertion Loss	Connector Style	Connector Type
MINI-CIRCUITS BLK-18-S+	Stainless Steel	Same Series	Free Hanging (In-Line)	18 GHz	SMA to SMA	SMA Plug Male Pin	Straight	50 Ohms	Plug to Jack	Female Socket SMA Jack	100 °C	-55 °C
MINI-CIRCUITS NM-SF50+	Stainless Steel	Between Series	Free Hanging (In-Line)	18 GHz		N Plug Male Pin	Straight	50 Ohms	Plug to Jack	Female Socket SMA Jack	100 °C	-55 °C
MINI-CIRCUITS SF-35M50+	Stainless Steel	Between Series	Free Hanging (In-Line)	26.5 GHz	SMA to 3.5mm	3.5mm Plug Male Pin	Straight	50 Ohms	Plug to Jack	Female Socket SMA Jack	85 °C	-55 °C
MINI-CIRCUITS 24B-KB+	Stainless Steel	Between Series		40 GHz			Straight	50 Ohms	Jack to Jack	OS-2.9 Jack Female Socket	100 °C	-55 °C	Female to Female	2.92 mm	2.4 mm	Bulkhead	2.4 mm	2.92 mm
MINI-CIRCUITS GAT-6+								50 Ohms											0.5 W	6 dB	4-SMD No Lead	8 GHz	0 Hz
MINI-CIRCUITS KM-KM50+	Stainless Steel	Same Series	Free Hanging (In-Line)	40 GHz			Straight	50 Ohms	Plug to Plug	2.92mm (OS-2.9) Plug Male Pin	100 °C	-55 °C	Male to Male	2.92 mm	2.92 mm		2.92 mm							0.13 dB
MINI-CIRCUITS GAT-15+								50 Ohms											0.5 W	15 dB	4-SMD No Lead	8 GHz	0 Hz
MINI-CIRCUITS 24F-24F+	Stainless Steel	Same Series	Free Hanging (In-Line)	50 GHz			Straight	50 Ohms	Jack to Jack		100 °C	-55 °C	Female to Female	2.4 mm	2.4 mm		2.4 mm	2.4 mm						0.14 dB
MINI-CIRCUITS NM-SM50+	Stainless Steel	Between Series	Free Hanging (In-Line)	18 GHz		SMA Plug Male Pin	Straight	50 Ohms	Plug to Plug	Male Pin N Plug	100 °C	-55 °C	Male to Male
MINI-CIRCUITS ANNE-50L+			Cap Free Hanging	12 GHz				50 Ohms																	SMA	Male Pin Plug

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 159.31
		10	$ 150.21
		25	$ 147.17
		50	$ 147.07

Description

General part information

- Series

Adapter Coaxial Connector 2.4mm (APC-2.4, OS-50) Jack, Female Socket To 2.4mm (APC-2.4, OS-50) Jack, Female Socket 50 Ohms
