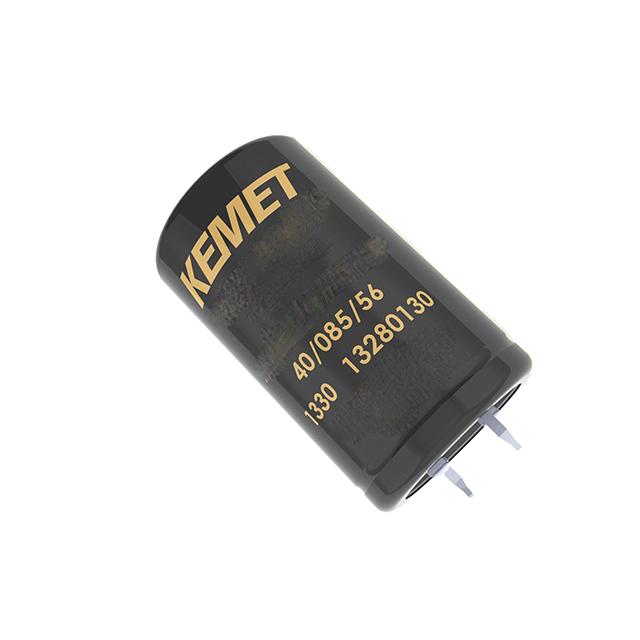

ALC10C471EF450

Active

KEMET

CAP ALUM 470UF 20% 450V SNAP TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ALC10C471EF450 Spec

ALC10C471EF450

Active

KEMET

CAP ALUM 470UF 20% 450V SNAP TH

Deep-Dive with AI

DocumentsDatasheet ALC10C471EF450 Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ALC10C471EF450

Applications	General Purpose
Capacitance	470 µF
ESR (Equivalent Series Resistance)	243 mOhm
Height - Seated (Max) [Max] [z]	2.047 in
Height - Seated (Max) [Max] [z]	52 mm
Impedance	147 mOhms
Lead Spacing	22.5 mm
Lead Spacing	0.886 in
Lifetime @ Temp.	18000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can - Snap-In - 4 Lead
Polarization	Polar
Ripple Current @ High Frequency	6.25 A
Ripple Current @ Low Frequency	3.08 A
Size / Dimension [diameter]	1.575 "
Size / Dimension [diameter]	40 mm
Tolerance	20 %
Voltage - Rated	450 V

ALC10C Series

Part	Capacitance	Applications	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lifetime @ Temp.	Ripple Current @ High Frequency	Package / Case	Tolerance	Lead Spacing	Lead Spacing	Operating Temperature [Max]	Operating Temperature [Min]	ESR (Equivalent Series Resistance)	Ripple Current @ Low Frequency	Impedance	Polarization	Voltage - Rated	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET ALC10C223ED035	22000 µF	General Purpose	1.575 "	40 mm	Through Hole	42 mm	1.654 in	18000 Hrs	5.65 A	Radial Can - Snap-In - 4 Lead	20 %	22.5 mm	0.886 in	85 °C	-40 °C	61 mOhm	5.56 A	55 mOhms	Polar	35 V
KEMET ALC10C102EJ450	1000 µF	General Purpose	1.575 "	40 mm	Through Hole			18000 Hrs	8.42 A	Radial Can - Snap-In - 4 Lead	20 %	22.5 mm	0.886 in	85 °C	-40 °C	142 mOhm	4.42 A	93 mOhms	Polar	450 V	2.835 in	72 mm
KEMET ALC10C333EF035	33000 µF	General Purpose	1.575 "	40 mm	Through Hole			18000 Hrs	10.03 A	Radial Can - Snap-In - 4 Lead	20 %	22.5 mm	0.886 in	85 °C	-40 °C	42 mOhm	7.16 A	38 mOhms	Polar	35 V	2.047 in	52 mm
KEMET ALC10C102EL450	1000 µF	General Purpose	1.575 "	40 mm	Through Hole			18000 Hrs	9.32 A	Radial Can - Snap-In - 4 Lead	20 %	22.5 mm	0.886 in	85 °C	-40 °C	114 mOhm	4.95 A	75 mOhms	Polar	450 V	3.228 in	82 mm
KEMET ALC10C331ED450	330 µF	General Purpose	1.575 "	40 mm	Through Hole	42 mm	1.654 in	18000 Hrs	4.91 A	Radial Can - Snap-In - 4 Lead	20 %	22.5 mm	0.886 in	85 °C	-40 °C		2.47 A	210 mOhms	Polar	450 V
KEMET ALC10C153EB035		General Purpose	1.575 "	40 mm	Through Hole			18000 Hrs	4.31 A	Radial Can - Snap-In - 4 Lead	20 %	22.5 mm	0.886 in	85 °C	-40 °C		4.24 A	78 mOhms	Polar	35 V
KEMET ALC10C102EP500	1000 µF	General Purpose	1.575 "	40 mm	Through Hole	107 mm	4.213 in	18000 Hrs	9.18 A	Radial Can - Snap-In - 4 Lead	20 %	22.5 mm	0.886 in	85 °C	-40 °C	140 mOhm	5.43 A	98 mOhms	Polar	500 V
KEMET ALC10C471EE400	470 µF	General Purpose	1.575 "	40 mm	Through Hole			18000 Hrs	5.49 A	Radial Can - Snap-In - 4 Lead	20 %	22.5 mm	0.886 in	85 °C	-40 °C	258 mOhm	3 A	168 mOhms	Polar	400 V	1.85 in	47 mm
KEMET ALC10C471EF450	470 µF	General Purpose	1.575 "	40 mm	Through Hole			18000 Hrs	6.25 A	Radial Can - Snap-In - 4 Lead	20 %	22.5 mm	0.886 in	85 °C	-40 °C	243 mOhm	3.08 A	147 mOhms	Polar	450 V	2.047 in	52 mm
KEMET ALC10C103EC063	10000 µF	General Purpose	1.575 "	40 mm	Through Hole			18000 Hrs	4.67 A	Radial Can - Snap-In - 4 Lead	20 %	22.5 mm	0.886 in	85 °C	-40 °C		4.58 A	72 mOhms	Polar	63 V	1.457 in	37 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 11.05
		10	$ 10.22
		72	$ 9.72

Description

General part information

ALC10C Series

470 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In - 4 Lead 243mOhm @ 100Hz 18000 Hrs @ 85°C
