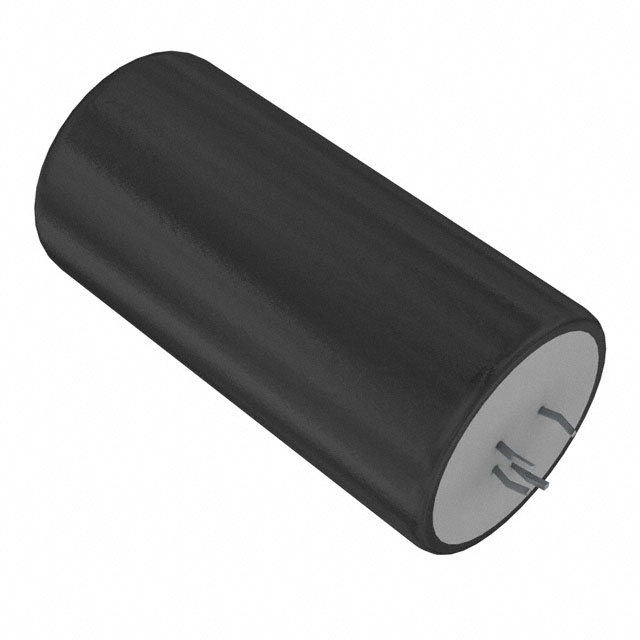

ALC10C331ED450

Active

KEMET

CAP ALUMINUM LYTIC 330UF 450V 20% (40 X 40MM) SNAP-IN 0.348 OHM 2.47A 18000H 85°C BAG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ALC10C331ED450

ALC10C331ED450

Active

KEMET

CAP ALUMINUM LYTIC 330UF 450V 20% (40 X 40MM) SNAP-IN 0.348 OHM 2.47A 18000H 85°C BAG

Deep-Dive with AI

DocumentsDatasheet ALC10C331ED450

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ALC10C331ED450

Applications	General Purpose
Capacitance	330 µF
Height - Seated (Max) [Max]	42 mm
Height - Seated (Max) [Max]	1.654 in
Impedance	210 mOhms
Lead Spacing	22.5 mm
Lead Spacing	0.886 in
Lifetime @ Temp.	18000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can - Snap-In - 4 Lead
Polarization	Polar
Ripple Current @ High Frequency	4.91 A
Ripple Current @ Low Frequency	2.47 A
Size / Dimension [diameter]	1.575 "
Size / Dimension [diameter]	40 mm
Tolerance	20 %
Voltage - Rated	450 V

ALC10C Series

Part	Capacitance	Applications	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lifetime @ Temp.	Ripple Current @ High Frequency	Package / Case	Tolerance	Lead Spacing	Lead Spacing	Operating Temperature [Max]	Operating Temperature [Min]	ESR (Equivalent Series Resistance)	Ripple Current @ Low Frequency	Impedance	Polarization	Voltage - Rated	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET ALC10C223ED035	22000 µF	General Purpose	1.575 "	40 mm	Through Hole	42 mm	1.654 in	18000 Hrs	5.65 A	Radial Can - Snap-In - 4 Lead	20 %	22.5 mm	0.886 in	85 °C	-40 °C	61 mOhm	5.56 A	55 mOhms	Polar	35 V
KEMET ALC10C102EJ450	1000 µF	General Purpose	1.575 "	40 mm	Through Hole			18000 Hrs	8.42 A	Radial Can - Snap-In - 4 Lead	20 %	22.5 mm	0.886 in	85 °C	-40 °C	142 mOhm	4.42 A	93 mOhms	Polar	450 V	2.835 in	72 mm
KEMET ALC10C333EF035	33000 µF	General Purpose	1.575 "	40 mm	Through Hole			18000 Hrs	10.03 A	Radial Can - Snap-In - 4 Lead	20 %	22.5 mm	0.886 in	85 °C	-40 °C	42 mOhm	7.16 A	38 mOhms	Polar	35 V	2.047 in	52 mm
KEMET ALC10C102EL450	1000 µF	General Purpose	1.575 "	40 mm	Through Hole			18000 Hrs	9.32 A	Radial Can - Snap-In - 4 Lead	20 %	22.5 mm	0.886 in	85 °C	-40 °C	114 mOhm	4.95 A	75 mOhms	Polar	450 V	3.228 in	82 mm
KEMET ALC10C331ED450	330 µF	General Purpose	1.575 "	40 mm	Through Hole	42 mm	1.654 in	18000 Hrs	4.91 A	Radial Can - Snap-In - 4 Lead	20 %	22.5 mm	0.886 in	85 °C	-40 °C		2.47 A	210 mOhms	Polar	450 V
KEMET ALC10C153EB035		General Purpose	1.575 "	40 mm	Through Hole			18000 Hrs	4.31 A	Radial Can - Snap-In - 4 Lead	20 %	22.5 mm	0.886 in	85 °C	-40 °C		4.24 A	78 mOhms	Polar	35 V
KEMET ALC10C102EP500	1000 µF	General Purpose	1.575 "	40 mm	Through Hole	107 mm	4.213 in	18000 Hrs	9.18 A	Radial Can - Snap-In - 4 Lead	20 %	22.5 mm	0.886 in	85 °C	-40 °C	140 mOhm	5.43 A	98 mOhms	Polar	500 V
KEMET ALC10C471EE400	470 µF	General Purpose	1.575 "	40 mm	Through Hole			18000 Hrs	5.49 A	Radial Can - Snap-In - 4 Lead	20 %	22.5 mm	0.886 in	85 °C	-40 °C	258 mOhm	3 A	168 mOhms	Polar	400 V	1.85 in	47 mm
KEMET ALC10C471EF450	470 µF	General Purpose	1.575 "	40 mm	Through Hole			18000 Hrs	6.25 A	Radial Can - Snap-In - 4 Lead	20 %	22.5 mm	0.886 in	85 °C	-40 °C	243 mOhm	3.08 A	147 mOhms	Polar	450 V	2.047 in	52 mm
KEMET ALC10C103EC063	10000 µF	General Purpose	1.575 "	40 mm	Through Hole			18000 Hrs	4.67 A	Radial Can - Snap-In - 4 Lead	20 %	22.5 mm	0.886 in	85 °C	-40 °C		4.58 A	72 mOhms	Polar	63 V	1.457 in	37 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.10
		10	$ 12.11
		72	$ 10.48
		144	$ 9.43
		504	$ 8.71
		1008	$ 8.18

Description

General part information

ALC10C Series

330 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In - 4 Lead 348mOhm @ 100Hz 18000 Hrs @ 85°C
