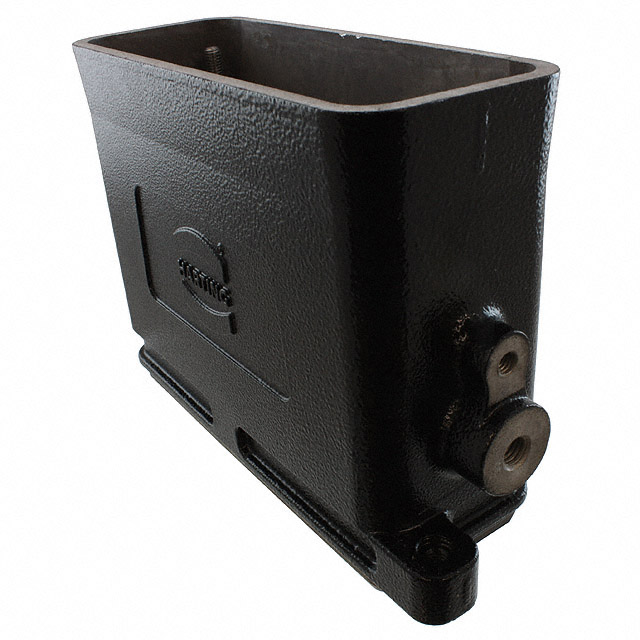

CONNECTOR ACCESSORY, HAN MODULAR CONNECTOR HOUSING

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

09400240951

Active

HARTING Technology Group

CONNECTOR ACCESSORY, HAN MODULAR CONNECTOR HOUSING

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09400240951

Connector Type	Base - Box Mount
Housing Color	Black
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Lock Location	Screw Locks on Hood
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	24HPR
Size / Dimension [x]	192 mm
Size / Dimension [x]	7.559 in
Size / Dimension [y]	58 mm
Size / Dimension [y]	2.283 "
Size / Dimension [z]	5 in
Size / Dimension [z]	127 mm
Style	Top Entry

09400240 Series

Part	Housing Material	Lock Location	Size	Connector Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Housing Finish	Style	Housing Color	Thread Size	Ingress Protection	Features	Size
HARTING Technology Group 09400240434
HARTING Technology Group 09400240403	Aluminum Die Cast	Screw Locks on Hood	24 B	Hood	7.559 in	110 mm	192 mm	4.331 "	2.283 "	58 mm	125 °C	-40 °C	Powder Coated	Top Entry	Black	PG29
HARTING Technology Group 09400240504	Aluminum Die Cast	Screw Locks on Hood	24 B	Hood	7.559 in	110.5 mm	192 mm	4.35 "	2.283 "	58 mm	125 °C	-40 °C	Powder Coated	Side Entry	Black	PG36
HARTING Technology Group 09400240461		Screw Locks on Hood	24 B	Hood	7.559 in	110.5 mm	192 mm	4.35 "	2.283 "	58 mm				Top Entry Triple		PG16
HARTING Technology Group 09400240382
HARTING Technology Group 09400240313	Aluminum Die Cast	Screw Locks on Hood	24 B	Base - Panel Mount							125 °C	-40 °C	Powder Coated	Bottom Entry	Black		IP65 IP68 IP69 IPx9K	Corrosion Resistant
HARTING Technology Group 09400240312
HARTING Technology Group 09400240951	Aluminum Die Cast	Screw Locks on Hood		Base - Box Mount	7.559 in	127 mm	192 mm	5 in	2.283 "	58 mm	125 °C	-40 °C	Powder Coated	Top Entry	Black				24HPR
HARTING Technology Group 09400240512	Aluminum Die Cast	Screw Locks on Hood	24 B	Hood	7.559 in	111 mm	192 mm	4.37 in	2.283 "	58 mm	125 °C	-40 °C	Powder Coated	Side Entry	Black	PG21		Corrosion Resistant
HARTING Technology Group 09400240368	Aluminum Die Cast	Screw Locks on Hood	24 B	Base - Panel Mount	7.559 in	28.9 mm	192 mm	1.138 "	2.283 "	58 mm	125 °C	-40 °C	Powder Coated	Bottom Entry	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 252.99
		10	$ 195.59
		25	$ 178.85
		50	$ 167.96
Newark	Each	1	$ 192.13
		5	$ 181.74
		10	$ 172.42

Description

General part information

09400240 Series

Base - Box Mount Connector Top Entry 24HPR IP65/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
