09400240504

Active

HARTING Technology Group

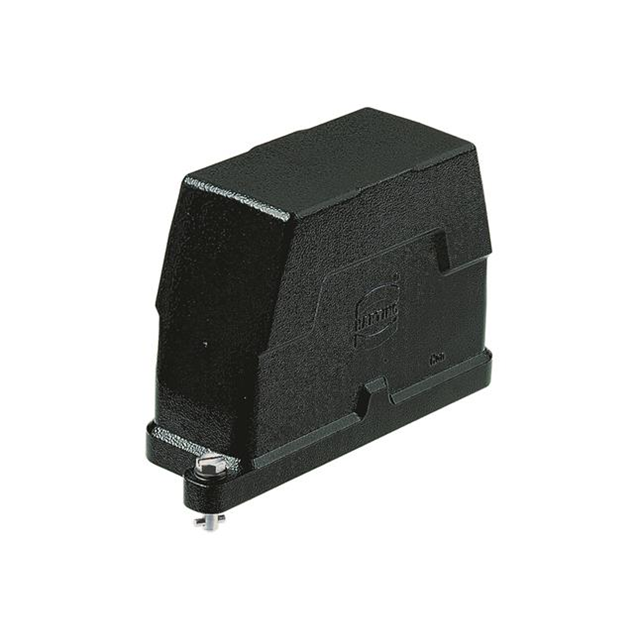

CONN HOOD SIDE ENTRY SZ24B PG36

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

09400240504

Active

HARTING Technology Group

CONN HOOD SIDE ENTRY SZ24B PG36

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09400240504

Connector Type	Hood
Housing Color	Black
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Lock Location	Screw Locks on Hood
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	24 B
Size / Dimension [x]	7.559 in
Size / Dimension [x]	192 mm
Size / Dimension [y]	58 mm
Size / Dimension [y]	2.283 "
Size / Dimension [z]	110.5 mm
Size / Dimension [z]	4.35 "
Style	Side Entry
Thread Size	PG36

09400240 Series

Part	Housing Material	Lock Location	Size	Connector Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Housing Finish	Style	Housing Color	Thread Size	Ingress Protection	Features	Size
HARTING Technology Group 09400240434
HARTING Technology Group 09400240403	Aluminum Die Cast	Screw Locks on Hood	24 B	Hood	7.559 in	110 mm	192 mm	4.331 "	2.283 "	58 mm	125 °C	-40 °C	Powder Coated	Top Entry	Black	PG29
HARTING Technology Group 09400240504	Aluminum Die Cast	Screw Locks on Hood	24 B	Hood	7.559 in	110.5 mm	192 mm	4.35 "	2.283 "	58 mm	125 °C	-40 °C	Powder Coated	Side Entry	Black	PG36
HARTING Technology Group 09400240461		Screw Locks on Hood	24 B	Hood	7.559 in	110.5 mm	192 mm	4.35 "	2.283 "	58 mm				Top Entry Triple		PG16
HARTING Technology Group 09400240382
HARTING Technology Group 09400240313	Aluminum Die Cast	Screw Locks on Hood	24 B	Base - Panel Mount							125 °C	-40 °C	Powder Coated	Bottom Entry	Black		IP65 IP68 IP69 IPx9K	Corrosion Resistant
HARTING Technology Group 09400240312
HARTING Technology Group 09400240951	Aluminum Die Cast	Screw Locks on Hood		Base - Box Mount	7.559 in	127 mm	192 mm	5 in	2.283 "	58 mm	125 °C	-40 °C	Powder Coated	Top Entry	Black				24HPR
HARTING Technology Group 09400240512	Aluminum Die Cast	Screw Locks on Hood	24 B	Hood	7.559 in	111 mm	192 mm	4.37 in	2.283 "	58 mm	125 °C	-40 °C	Powder Coated	Side Entry	Black	PG21		Corrosion Resistant
HARTING Technology Group 09400240368	Aluminum Die Cast	Screw Locks on Hood	24 B	Base - Panel Mount	7.559 in	28.9 mm	192 mm	1.138 "	2.283 "	58 mm	125 °C	-40 °C	Powder Coated	Bottom Entry	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 154.24

Description

General part information

09400240 Series

Hood Connector Side Entry PG36 24B IP65/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
