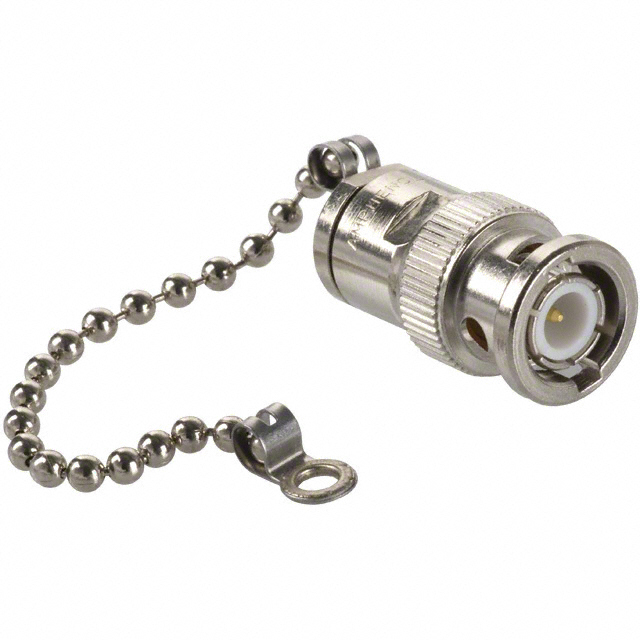

000-35650-51

Active

Amphenol RF

CONN TERMINATOR PLUG BNC 51OHM

Search across all available documentation for this part.

Active

Amphenol RF

CONN TERMINATOR PLUG BNC 51OHM

Technical Specifications

Parameters and characteristics for this part

Specification	000-35650-51

Body Finish	Nickel
Body Material	Brass
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Finish	Gold
Contact Material	Brass
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Chain
Frequency - Max [Max]	4 GHz
Impedance	51 Ohms
Mounting Type	Free Hanging, Cap

Part	Body Finish	Impedance	Number of Ports	Dielectric Material	Connector Type	Shield Termination	Mating Cycles	Contact Termination	Center Contact Material	Housing Color	Body Material	Connector Style	Center Contact Plating	Cable Group	Frequency - Max [Max]	Mounting Type	Includes	Features	Contact Finish	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol RF 000-35275	Nickel	50 Ohms	1	Polytetrafluoroethylene (PTFE)	Female Socket Jack	Clamp	500	Solder	Beryllium Copper	Silver	Brass	N Type	Silver	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58
Amphenol RF 000-35025	Nickel	50 Ohms	1	Polytetrafluoroethylene (PTFE)	Female Socket Jack	Clamp	500	Solder	Beryllium Copper	Silver	Brass	N Type	Silver	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	11 GHz	Free Hanging (In-Line)	1 Braid Clamp 1 Clamp 1 Connector 1 Contact 1 Gasket
Amphenol RF 000-35650-75	Nickel	75 Ohms		Polytetrafluoroethylene (PTFE)	Male Pin Plug						Brass	BNC			2 GHz	Cap Free Hanging		Chain	Gold	Brass
Amphenol RF 000-35025-RFX	Nickel	50 Ohms	1	Polytetrafluoroethylene (PTFE)	Female Socket Jack	Clamp	500	Solder	Phosphor Bronze	Silver	Brass	N Type	Gold	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	11 GHz	Free Hanging (In-Line)	1 Braid Clamp 1 Clamp 1 Connector 1 Contact 1 Gasket 1 Washer				-65 ░C	165 °C
Amphenol RF 000-35650-51	Nickel	51 Ohms		Polytetrafluoroethylene (PTFE)	Male Pin Plug						Brass	BNC			4 GHz	Cap Free Hanging		Chain	Gold	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminator Coax Connector Plug, Male Pin BNC 51 Ohms
