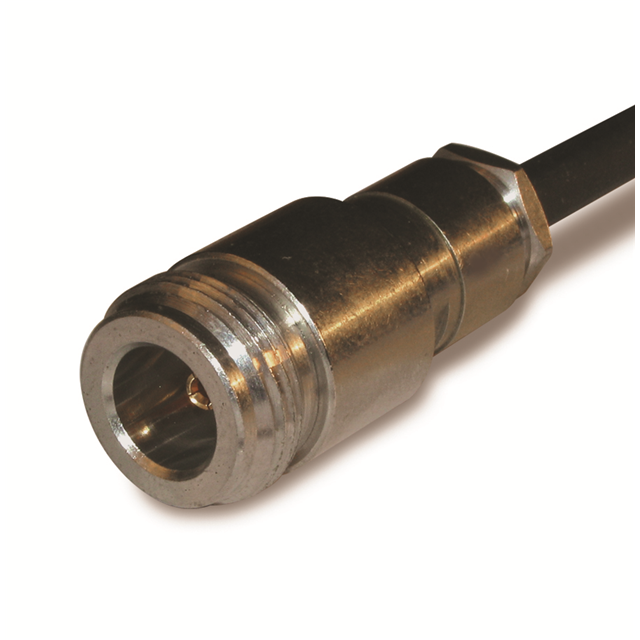

000-35025-RFX

Active

Amphenol RF

CONN N JACK STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN N JACK STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	000-35025-RFX

Body Finish	Nickel
Body Material	Brass
Cable Group	58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Braid Clamp, 1 Washer, 1 Gasket, 1 Contact, 1 Connector, 1 Clamp
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp

Part	Body Finish	Impedance	Number of Ports	Dielectric Material	Connector Type	Shield Termination	Mating Cycles	Contact Termination	Center Contact Material	Housing Color	Body Material	Connector Style	Center Contact Plating	Cable Group	Frequency - Max [Max]	Mounting Type	Includes	Features	Contact Finish	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol RF 000-35275	Nickel	50 Ohms	1	Polytetrafluoroethylene (PTFE)	Female Socket Jack	Clamp	500	Solder	Beryllium Copper	Silver	Brass	N Type	Silver	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58
Amphenol RF 000-35025	Nickel	50 Ohms	1	Polytetrafluoroethylene (PTFE)	Female Socket Jack	Clamp	500	Solder	Beryllium Copper	Silver	Brass	N Type	Silver	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	11 GHz	Free Hanging (In-Line)	1 Braid Clamp 1 Clamp 1 Connector 1 Contact 1 Gasket
Amphenol RF 000-35650-75	Nickel	75 Ohms		Polytetrafluoroethylene (PTFE)	Male Pin Plug						Brass	BNC			2 GHz	Cap Free Hanging		Chain	Gold	Brass
Amphenol RF 000-35025-RFX	Nickel	50 Ohms	1	Polytetrafluoroethylene (PTFE)	Female Socket Jack	Clamp	500	Solder	Phosphor Bronze	Silver	Brass	N Type	Gold	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	11 GHz	Free Hanging (In-Line)	1 Braid Clamp 1 Clamp 1 Connector 1 Contact 1 Gasket 1 Washer				-65 ░C	165 °C
Amphenol RF 000-35650-51	Nickel	51 Ohms		Polytetrafluoroethylene (PTFE)	Male Pin Plug						Brass	BNC			4 GHz	Cap Free Hanging		Chain	Gold	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 19.13

General part information

N Type Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Solder

Technical documentation and resources

No documents available
