7015-0802

Active

Amphenol SV Microwave

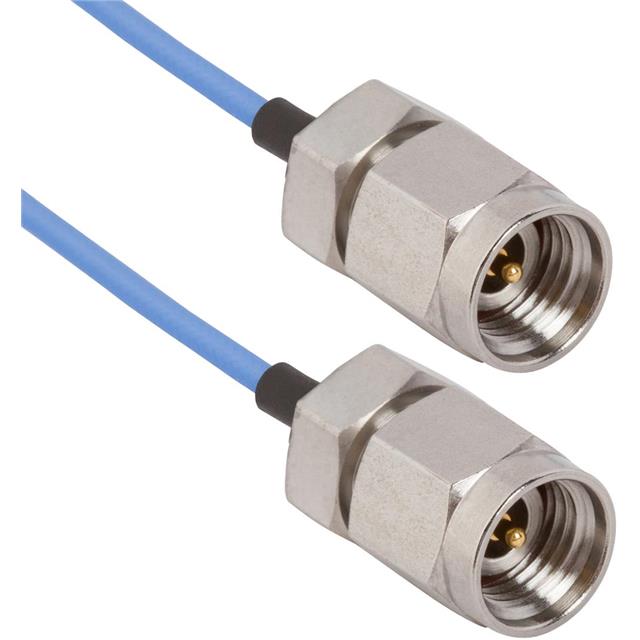

2.92MM MALE TO 2.92MM MALE 24" CABLE ASSEMBLY FOR .047 CABLE /BULK - BAG (PACK FILL QTY: 25)

Search across all available documentation for this part.

Active

Amphenol SV Microwave

2.92MM MALE TO 2.92MM MALE 24" CABLE ASSEMBLY FOR .047 CABLE /BULK - BAG (PACK FILL QTY: 25)

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Color	Features	1st Contact Gender	Style [Min]	Style [Max]	2nd Connector	Cable Type	1st Connector Mounting Type	Frequency - Max [Max]	Overall Impedance	Length	Length	2nd Contact Gender	2nd Connector Mounting Type	1st Connector
Amphenol SV Microwave 7015-0617	-65 ░C	165 °C	Blue	Shielded	Male	2.92 mm	2.92 mm	2.92 mm	TFlex-405	Free Hanging (In-Line)	40 GHz	50 Ohms	91.44 cm	36 in	Male	Free Hanging (In-Line)	2.92mm Plug
Amphenol SV Microwave 7015-0802	-65 ░C	165 °C	Blue	Shielded	Male	2.92 mm	2.92 mm	2.92 mm	0.047" Flexible Cable	Free Hanging (In-Line)	40 GHz	50 Ohms	609.6 mm	24 "	Male	Free Hanging (In-Line)	2.92mm Plug
Amphenol SV Microwave 7015-0803	-65 ░C	165 °C	Blue	Shielded	Male	2.92 mm	2.92 mm	2.92 mm	TFlex-405	Free Hanging (In-Line)	40 GHz	50 Ohms	152.4 mm	6 in	Male	Free Hanging (In-Line)	2.92mm Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial 2.92mm to 2.92mm 0.047" Flexible Cable 24.00" (609.60mm)

Technical documentation and resources

No documents available
