7015-0617

Active

Amphenol SV Microwave

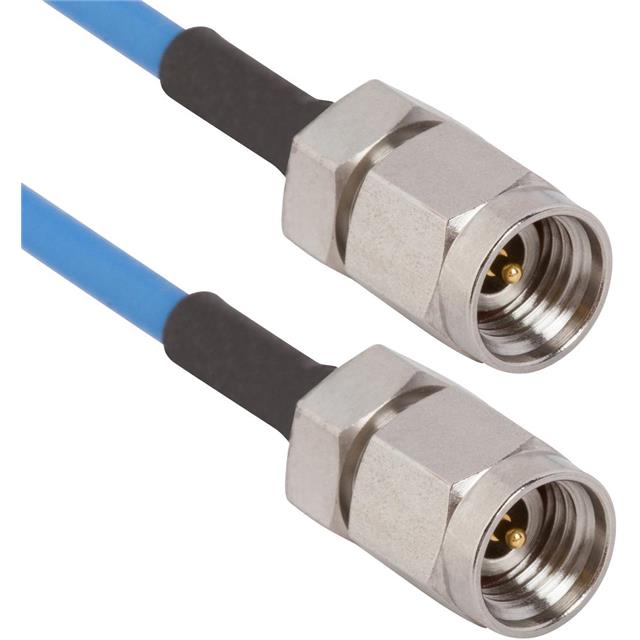

RF / COAXIAL CABLE ASSEMBLY, 2.92MM PLUG TO 2.92MM PLUG, T-FLEX 405, 50 OHM, 36 ", 914.4 MM

Search across all available documentation for this part.

Active

Amphenol SV Microwave

RF / COAXIAL CABLE ASSEMBLY, 2.92MM PLUG TO 2.92MM PLUG, T-FLEX 405, 50 OHM, 36 ", 914.4 MM

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Color	Features	1st Contact Gender	Style [Min]	Style [Max]	2nd Connector	Cable Type	1st Connector Mounting Type	Frequency - Max [Max]	Overall Impedance	Length	Length	2nd Contact Gender	2nd Connector Mounting Type	1st Connector
Amphenol SV Microwave 7015-0617	-65 ░C	165 °C	Blue	Shielded	Male	2.92 mm	2.92 mm	2.92 mm	TFlex-405	Free Hanging (In-Line)	40 GHz	50 Ohms	91.44 cm	36 in	Male	Free Hanging (In-Line)	2.92mm Plug
Amphenol SV Microwave 7015-0802	-65 ░C	165 °C	Blue	Shielded	Male	2.92 mm	2.92 mm	2.92 mm	0.047" Flexible Cable	Free Hanging (In-Line)	40 GHz	50 Ohms	609.6 mm	24 "	Male	Free Hanging (In-Line)	2.92mm Plug
Amphenol SV Microwave 7015-0803	-65 ░C	165 °C	Blue	Shielded	Male	2.92 mm	2.92 mm	2.92 mm	TFlex-405	Free Hanging (In-Line)	40 GHz	50 Ohms	152.4 mm	6 in	Male	Free Hanging (In-Line)	2.92mm Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial 2.92mm to 2.92mm TFlex-405 36.00" (914.40mm)
