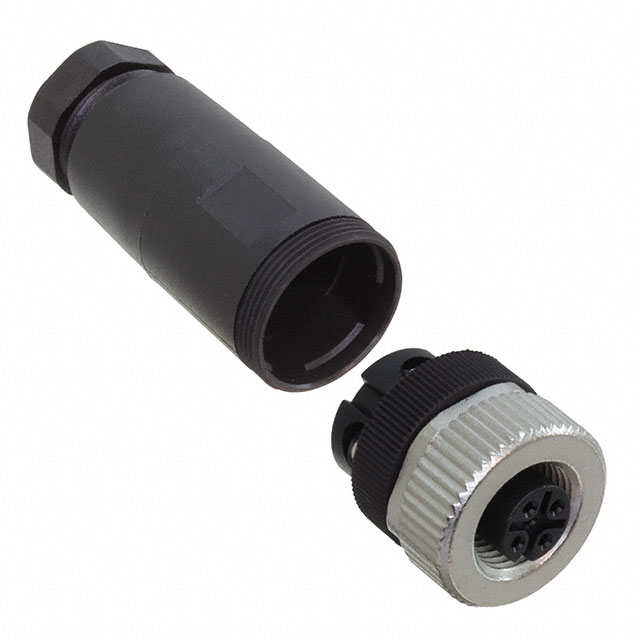

V1-G-PG9

Active

PEPPERL+FUCHS

CONN PLUG FMALE 4P COPPER SCREW

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

CONN PLUG FMALE 4P COPPER SCREW

Technical Specifications

Parameters and characteristics for this part

Part	Applications	Contact Material	Mounting Type	Ingress Protection	Color	Features	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Termination	Shell Size - Insert	Orientation	Primary Material	Shell Material	Backshell Material, Plating	Shell Finish	Current Rating (Amps)	Shielding	Number of Positions	Voltage Rating	Connector Type	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Material Flammability Rating	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]
PEPPERL+FUCHS V1-G-BK	Industrial Automation	Copper Zinc	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Black Silver	Backshell Coupling Nut	85 °C	-40 °C	Copper Tin Zinc	Screw	M12-4	Keyed	Metal	Copper Zinc	Nylon Polyamide (PA)	Nickel	4 A	Unshielded	4	250 VAC	Female Sockets Plug	4 mm 6 mm	0.157 in 0.236 in
PEPPERL+FUCHS V1-G-Q3	Industrial Automation	Copper Tin	Free Hanging (In-Line)	IP65 IP67	Black	Backshell Coupling Nut	80 C	-25 °C	Gold	IDC	M12-4	Keyed	Plastic	Plastic	Nylon 6/6 Polyamide (PA66)		4 A	Unshielded	4	125 VDC	Female Sockets Plug	3.5 mm	0.138 in 0.236 in	6 mm	UL94 V-0
PEPPERL+FUCHS V1-G-PG9	Industrial Automation	Copper Zinc	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Black Silver	Backshell Coupling Nut	85 °C	-25 °C	Copper Tin Zinc	Screw	M12-4	Keyed	Metal	Copper Zinc	Nylon Polyamide (PA)	Nickel	4 A	Unshielded	4	250 VAC	Female Sockets Plug					8 mm	6 mm	0.315 in	0.236 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Plug, Female Sockets Screw
