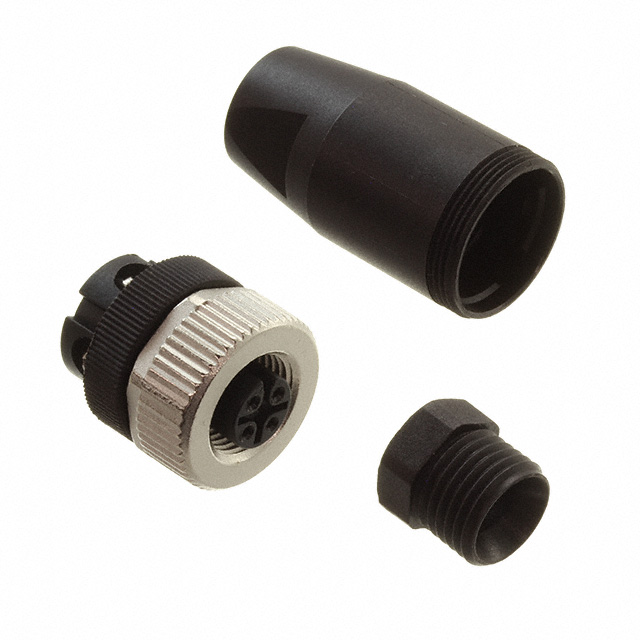

V1-G-BK
ActivePEPPERL+FUCHS
CONN PLUG FMALE 4P COPPER SCREW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
V1-G-BK
ActivePEPPERL+FUCHS
CONN PLUG FMALE 4P COPPER SCREW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | V1-G-BK |
|---|---|
| Applications | Industrial Automation |
| Backshell Material, Plating | Polyamide (PA), Nylon |
| Cable Opening [diameter] | 6 mm, 4 mm |
| Cable Opening [diameter] | 0.236 in, 0.157 in |
| Color | Black, Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Copper Tin Zinc |
| Contact Material | Copper Zinc |
| Current Rating (Amps) | 4 A |
| Features | Coupling Nut, Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Copper Zinc |
| Shell Size - Insert | M12-4 |
| Shielding | Unshielded |
| Termination | Screw |
| Voltage Rating | 250 VAC |
V1-G Series
| Part | Applications | Contact Material | Mounting Type | Ingress Protection | Color | Features | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish - Mating | Termination | Shell Size - Insert | Orientation | Primary Material | Shell Material | Backshell Material, Plating | Shell Finish | Current Rating (Amps) | Shielding | Number of Positions | Voltage Rating | Connector Type | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [diameter] | Material Flammability Rating | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PEPPERL+FUCHS | Industrial Automation | Copper Zinc | Free Hanging (In-Line) | IP67 - Dust Tight Waterproof | Black Silver | Backshell Coupling Nut | 85 °C | -40 °C | Copper Tin Zinc | Screw | M12-4 | Keyed | Metal | Copper Zinc | Nylon Polyamide (PA) | Nickel | 4 A | Unshielded | 4 | 250 VAC | Female Sockets Plug | 4 mm 6 mm | 0.157 in 0.236 in | ||||||
PEPPERL+FUCHS | Industrial Automation | Copper Tin | Free Hanging (In-Line) | IP65 IP67 | Black | Backshell Coupling Nut | 80 C | -25 °C | Gold | IDC | M12-4 | Keyed | Plastic | Plastic | Nylon 6/6 Polyamide (PA66) | 4 A | Unshielded | 4 | 125 VDC | Female Sockets Plug | 3.5 mm | 0.138 in 0.236 in | 6 mm | UL94 V-0 | |||||
PEPPERL+FUCHS | Industrial Automation | Copper Zinc | Free Hanging (In-Line) | IP67 - Dust Tight Waterproof | Black Silver | Backshell Coupling Nut | 85 °C | -25 °C | Copper Tin Zinc | Screw | M12-4 | Keyed | Metal | Copper Zinc | Nylon Polyamide (PA) | Nickel | 4 A | Unshielded | 4 | 250 VAC | Female Sockets Plug | 8 mm | 6 mm | 0.315 in | 0.236 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 25.79 | |
| 10 | $ 22.58 | |||
| 25 | $ 21.60 | |||
| 50 | $ 20.91 | |||
| 100 | $ 20.21 | |||
| 250 | $ 19.10 | |||
| 500 | $ 18.54 | |||
Description
General part information
V1-G Series
4 Position Circular Connector Plug, Female Sockets Screw
